Metrology-Grade Accuracy
With a scan accuracy of 0.01 mm, it ensures consistent, reliable results for complex small objects.

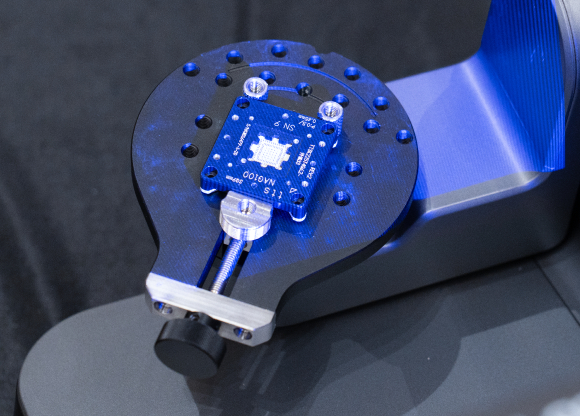

Automatic & Efficient
Features 3-axis turntable, enabling hands-free, multi-angle scanning with one-click operation to capture data efficiently.
Ultra-Fine Details
Equipped with dual 5MP high resolution cameras, it can capture every detail of the components meticulously.
Full Color Scanning
Captures true-to-life colors to ensure accurate texture reproduction for enhanced inspection, documentation, and digital modeling for various applications.

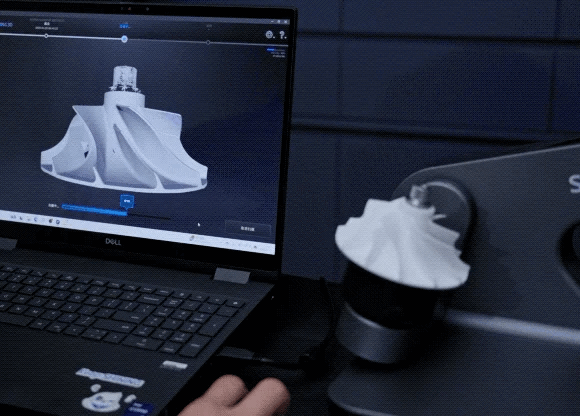

Advanced Software
Powered by UltraScan software, AutoScan Inspec2 delivers AI intelligent scanninng algorithm for effortless operation. With broad compatibility across SHINING3D Inspect, Geomagic Control X, Design X, PolyWorks, EXModel and more, it streamlines workflows for quality inspection and reverse engineering.

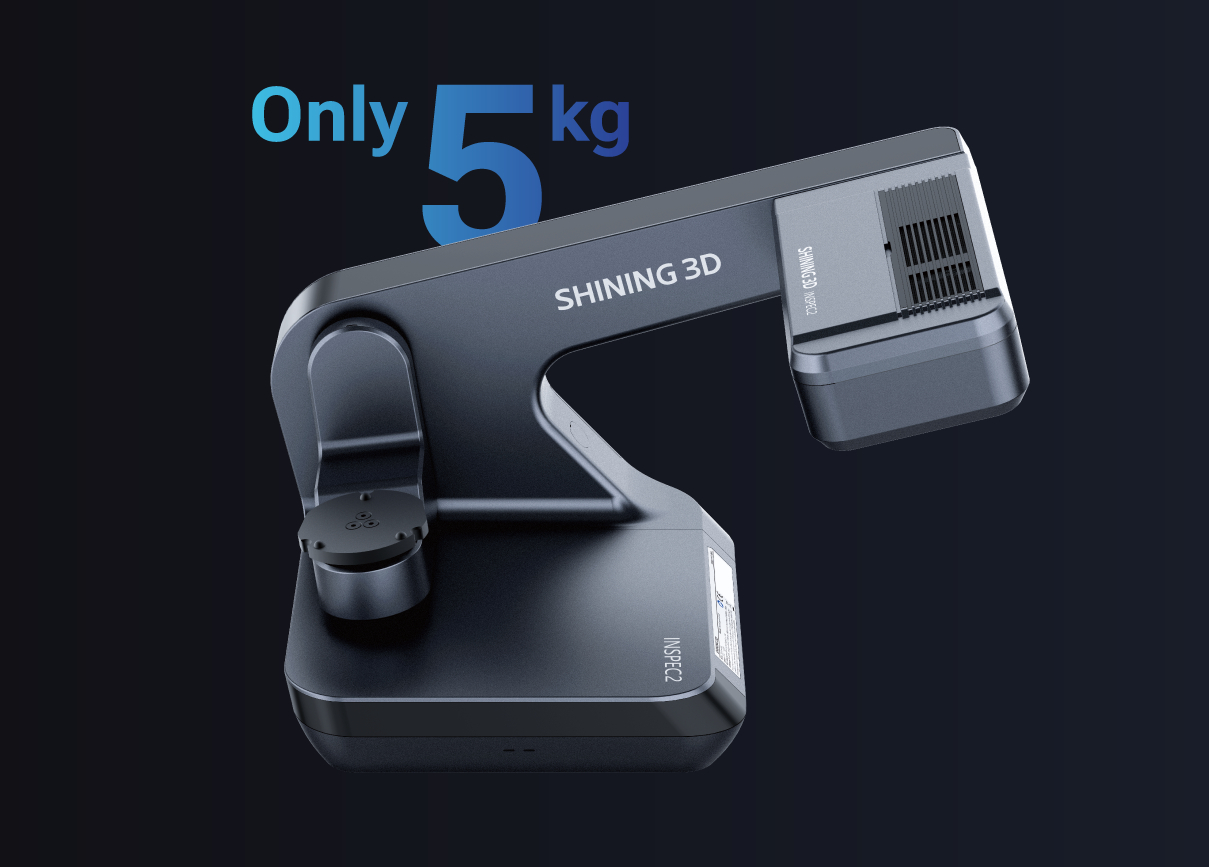

Compact & Lightweight
Weighing only 5 kg, its streamlined, space-saving design makes it easy to integrated into laboratories, workshops, and industrial environments.
SHINING3D Inspect is a 3D inspection module that has received dual measurement accuracy certification from PTB (Physikalisch-Technische Bundesanstalt) for both Gaussian and Chebyshev software standards in length measurement.
Combined with it, AutoScan Inspec2 provides a streamlined workflow from scanning to inspection, enabling users to perform dimensional analysis, GD&T inspection, and generate professional reports.
Key Features
Multi-Format Data Import and Management
2D Dimensions Inspection
Multi Alignment Toolset
Multi Alignment Toolset
Customized Reporting
Measurement Toolset
2D & 3D Comparison
Customized Reporting
GD&T Evaluation
Cross-Section Analysis Toolset
Intelligent Feature Recognition
TECHNICAL SPECIFICATIONS
AutoScan Inspec2
| Product | AutoScan Inspec2 |
| Accuracy | 0.01 mm |
| Field of view | 140 x 90 × 80 mm |
| Align mode | Feature, Markers |
| Point distance | 0.05 mm |
| Rotation axis | 3 Axis |
| Camera resolution | 2 x 5MP |
| Light source | LED blue light |
| Color scan | Supported |
| Dimensions | 420 x 260×270 mm |
| Weight | 5 kg |
| Power | DC 24V |
| Work temperature | 0~40℃ |
| Operation system | Windows 10/Windows 11 (64 bits) |
| Output format | STL, OBJ, PLY |
| Certification | CE, FCC, ROHS, WEEE, KC |
