The EinScan Rigil stands at the forefront of modern 3D scanning solutions, delivering a transformative leap in non-contact type 3D scanner systems. Engineered for versatility and precision, this cutting-edge 3D laser scanner integrates built-in computing, full wireless functionality, and hybrid light source technology, making it a powerhouse tool for reverse engineering applications, 3D prototyping, metrology and quality control, and Industry 4.0 technologies.

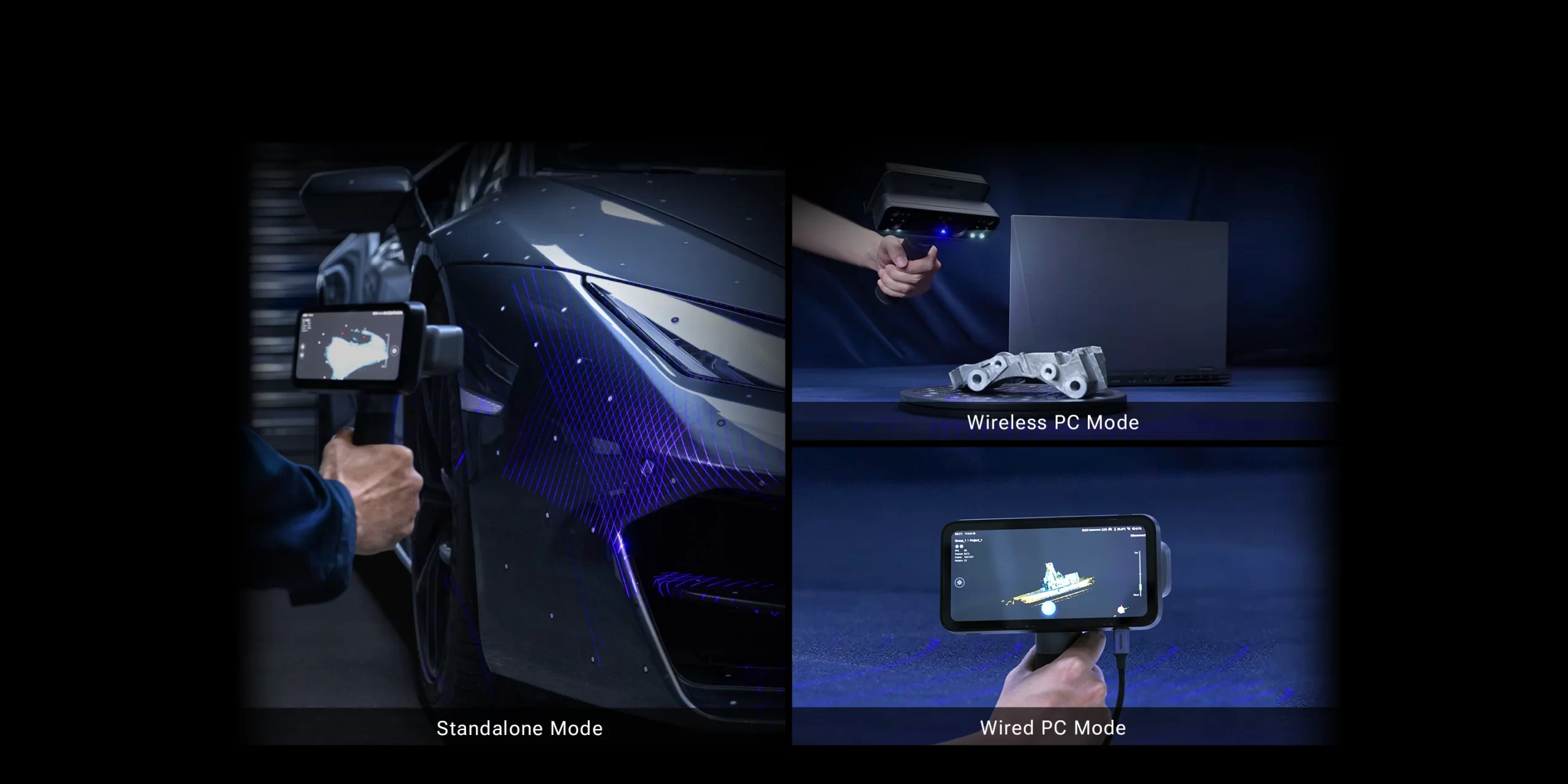

As the world’s first tri-mode portable handheld scanning system, Rigil offers Standalone Mode (on-device scanning and processing), Wireless PC Mode (via Wi-Fi 6), and Wired PC Mode (for high-throughput processing)—allowing users to scan with maximum flexibility, indoors or outdoors. This capability is particularly beneficial for users needing a 3D laser scanning system that can adapt to diverse working environments without sacrificing data fidelity.

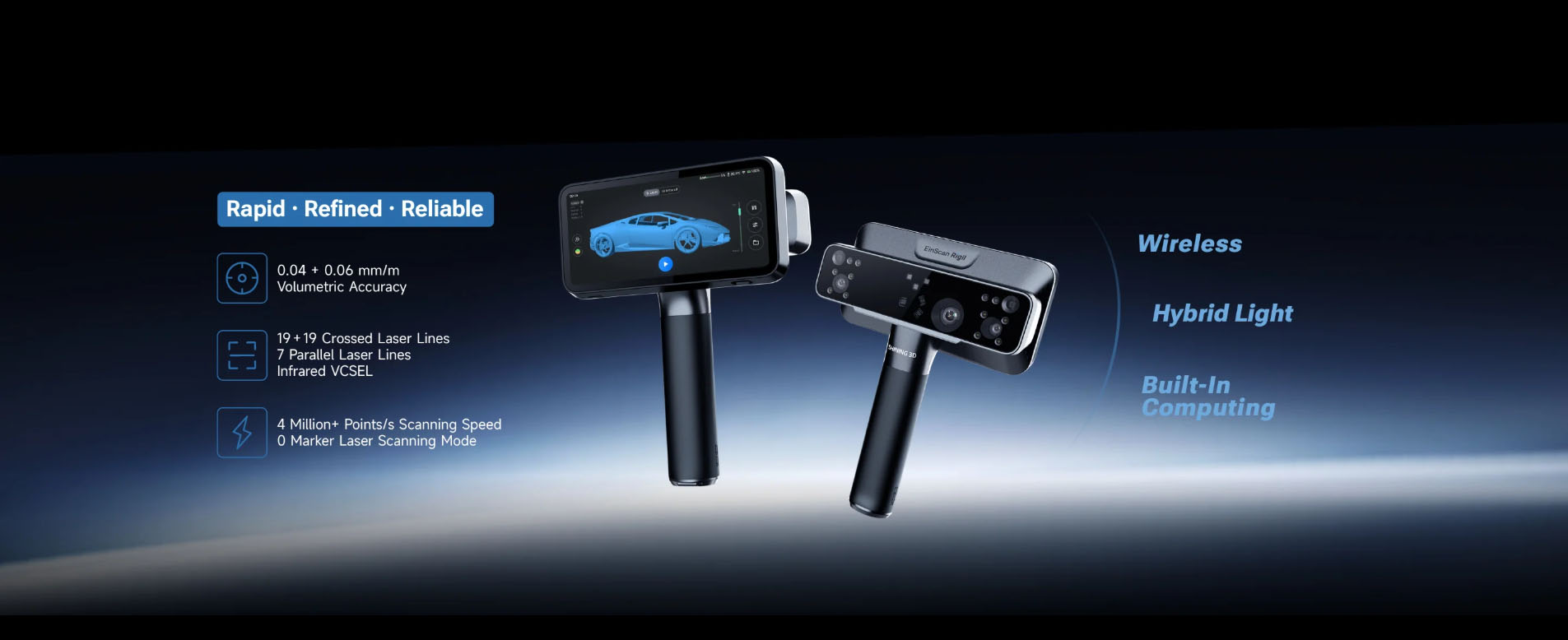

The scanner employs 19+19 crossed blue laser lines for rapid capture and 7 parallel blue laser lines for ultra-fine detail. With integrated infrared VCSEL technology, it offers marker-free laser scanning—streamlining workflows and reducing setup time. Together, these hybrid light sources form the backbone of Rigil’s ability to deliver precision scans of complex, reflective, or dark surfaces—areas where conventional systems often struggle.
Equipped with a high-resolution 5MP color texture camera, Rigil captures full-color surface details ideal for visualization, analysis, and archival. The result is a high-fidelity 3D digital scanner capable of producing textured, watertight meshes ready for design, inspection, or manufacturing.
Users can export in common formats including STL files, OBJ, and PLY—making the Rigil compatible with a wide range of post-processing and design tools. When paired with leading 3D metrology software or platforms like Geomagic Design X, it enables direct CAD conversion, allowing engineers and designers to seamlessly close the loop between physical parts and digital models. These features make Rigil not only a 3D laser scanner but also a gateway to complete 3D scanning reverse engineering pipelines.
The dedicated EXScan Rigil software further enhances usability with tools such as mirror, cut-plane, flip normals, and mesh cleanup—simplifying even the most complex data editing tasks. Whether you’re digitizing mechanical parts, heritage artifacts, or biomedical forms, Rigil provides a clean, ready-to-use mesh in just a few clicks.
The system is robust across a wide working distance (160 mm to 1500 mm) and captures up to 4.4 million points per second. This performance, combined with its compact form factor and lightweight build (~870g), positions it as one of the most advanced handheld 3D scanners in its category.
Rigil also caters to growing demand for accessible, high-performance scanning in the Indian market. For institutions and businesses researching 3D scanner price in India, Rigil offers a high-end feature set with value-driven flexibility—an ideal blend for those seeking to scale up their capabilities with a future-ready 3D laser scanner. It is also well-suited for 3D object scanning services, academic R&D, automotive prototyping, digital twin creation, and even 3D face scanning technology in med-tech innovation spaces.
Whether you’re into a budgeting phase looking for 3D scanner prices in India, searching for the best 3D digital scanner for academic research, or exploring 3D scanning services for product development, the EinScan Rigil offers unmatched value in the evolving space of Industry 4.0 technologies.
