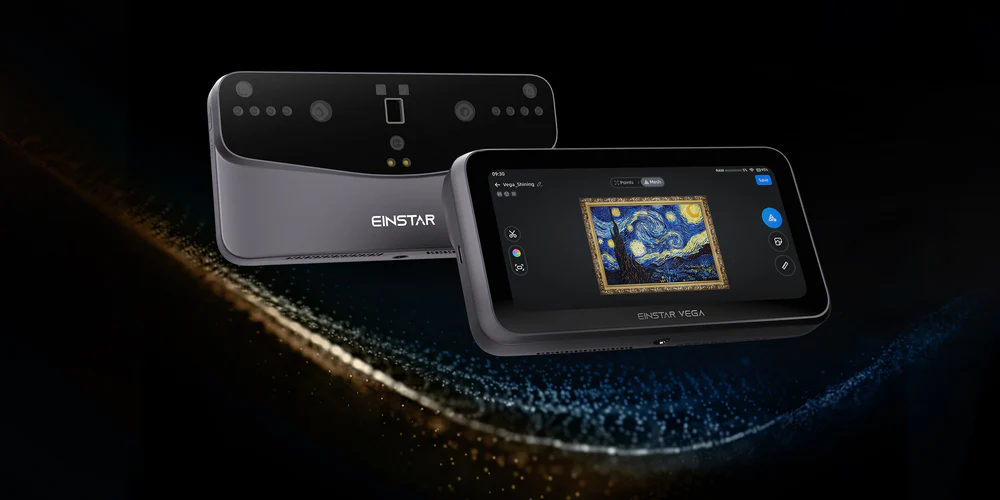

ALL-IN-ONE System
-
Dual Scanning Technologies
-
Integrated Computing
-
Internal Data Storage

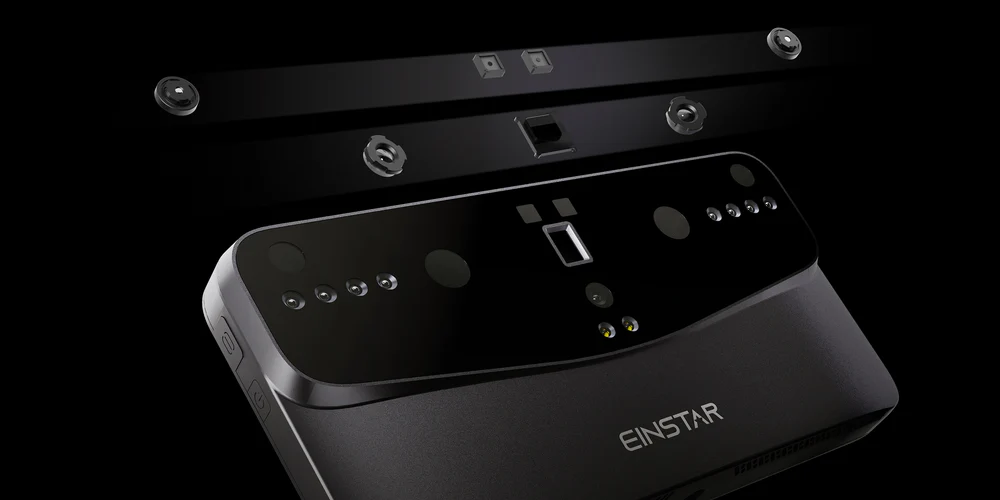

Two 3D Scanners in One
-
VCSEL for Long-Range Scanning
Seamless Scanning in Any Environment
-
MEMS for Short-Range Scanning
Reliable Scanning for High-Precision Data
User-Friendly Design
-
Instant Scan Activation
-
Comfortable Ergonomics
-
One-Touch Start.
-

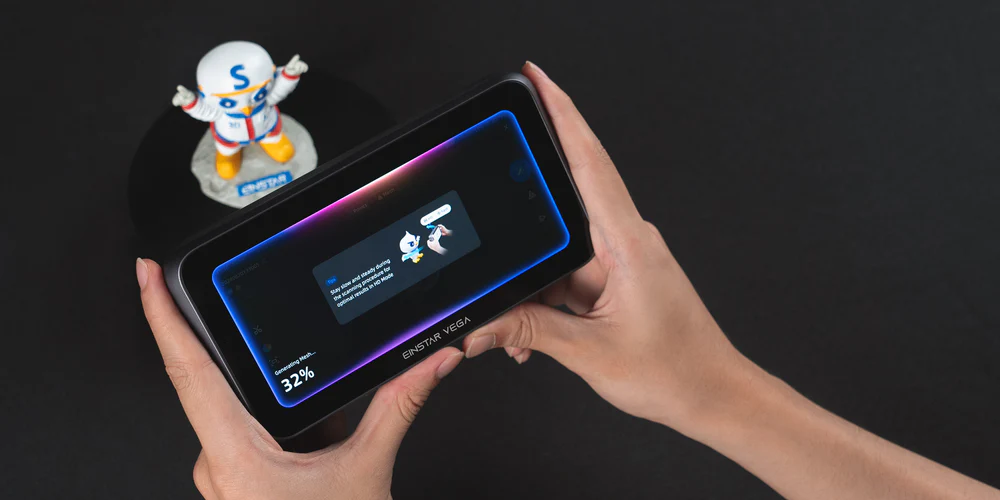

One-Touch Processing
Wireless Solution
-
Cord-Free Scanning – No PC Connection Needed
-
Seamless Data Transfer – Share to SHINING 3D Cloud
-
Wireless Screen Casting – Display on an External Screen
Advanced Software Features
-
12mm Marker Alignment in Fast Mode – Reduces Marker Usage for Scanning Large Objects
-
Hybrid Alignment – Improves Tracking Stability and Efficiency
-
Scanning Rewind – Allows Error Correction During Scanning
-
Automatic Base Plane Detection
-
Coordinate System Adjustment
-
Model Measurement
Versatile Object Scanning
Fast Mod
-
Ideal for medium to large-sized objects
-
Working distance: 350–1500mm for optimal coverage
-
Scanning speed: Up to 20fps
Versatile Object Scanning

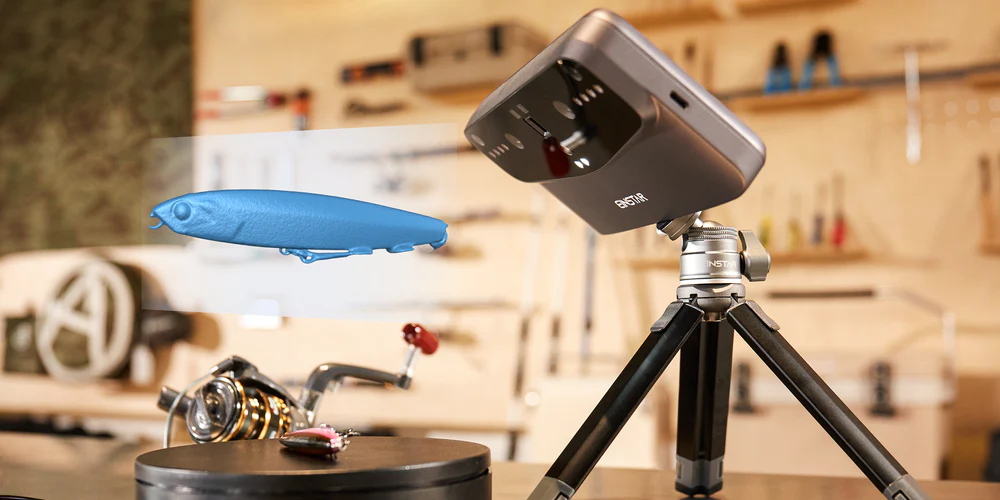

HD Mode
-
Ideal for small to medium-sized objects
-
Working distance: 100–350mm for detailed scanning
-
Scanning speed: Up to 15fps
High-Performance Hardware
-
4-inch 2K AMOLED Display
-
32GB RAM
-
32GB eMMC + 512GB SSD Storage
-
48MP RGB Texture Camera
-
Lightweight at 535g
-
Uninterrupted Operation While Charging

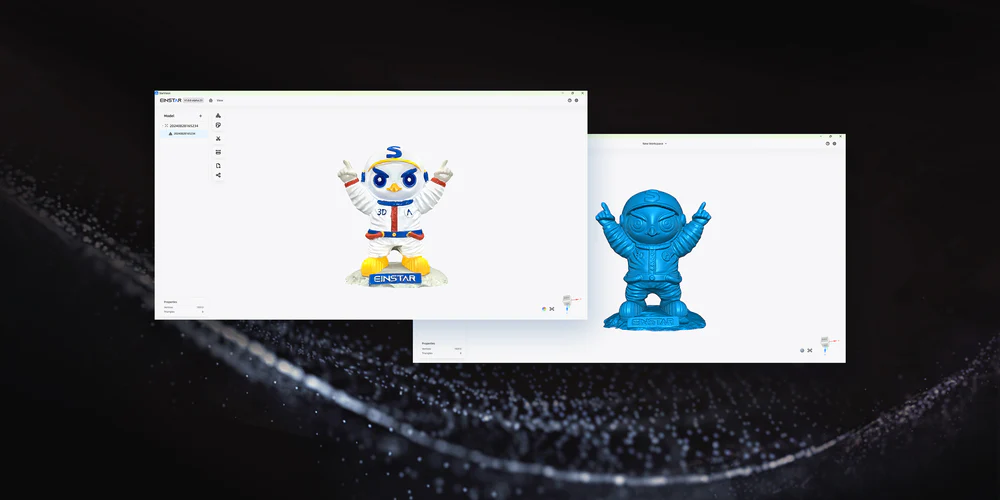

PC Software Starvision
Supports both Windows and Mac OS

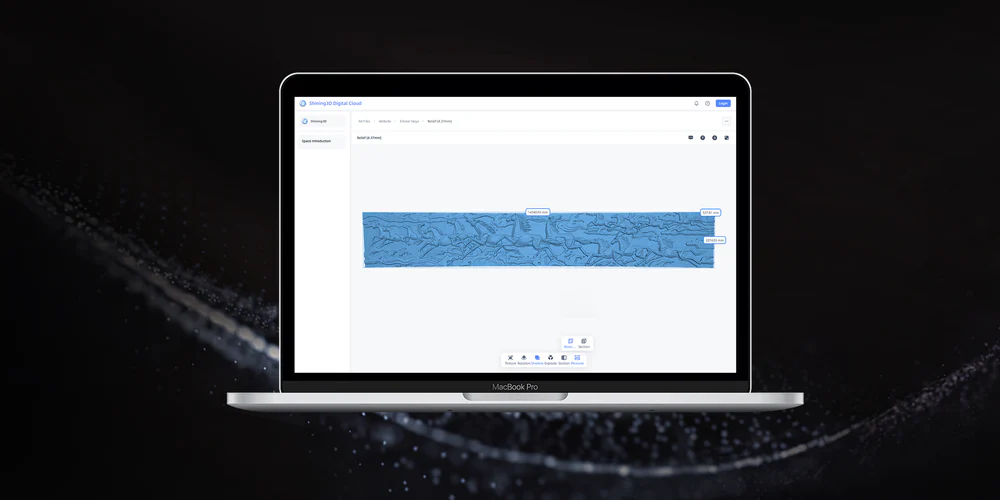

SHINING 3D Cloud
-
Seamless Data Sharing and Collaboration
-
Secure Data Storage and Management
-
Precise Data Measurement Tools
-
Free 5GB Storage for Every SHINING 3D User

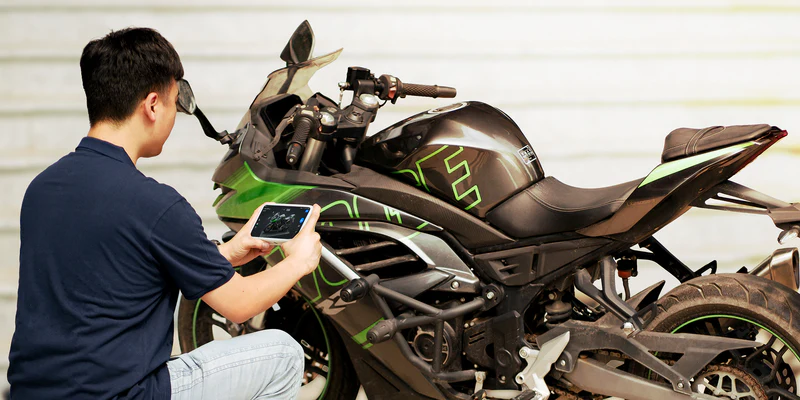

Reliable Scanning Indoors and Outdoors
-
Effective Scanning in Sunlight
-
Optimized for Dark Surfaces

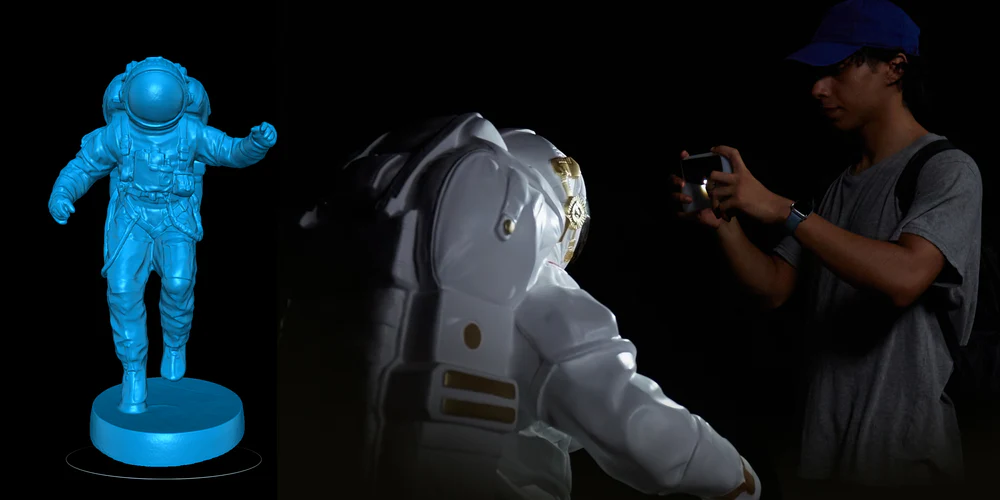

Seamless Scanning Anytime
-
Unrestricted Scanning, even at Night
EINSTAR VEGA Specification
| Scan Mode | HD Mode Fast Mode |
| Point Distance: | HD Mode: 0.05mm～3mm Fast Mode: 0.5mm~10mm |
| Working Distance: | HD Mode: 100-350mm Fast Mode: 350-1500mm |
| Align Mode: | Feature; Texture; Markers; Hybrid |
| Output Formats: | ply; stl; obj; asc |
| Scanner Body Weight: | Limited edition : 643g; Regular edition : 535g |
| CPU: | 8-core CPU, 2.4GHz |
| Internal Hard Drive: | 32GB eMMC + 512GB SSD |
| Interface: | Wi-Fi 6, USB Type C |
| Supplemental Light: | 10 |
| Operating Temperature Range: | -10~40℃ |
| Packing Size: | 380*305*155mm |
| Battery: | Built-in 5000mAh； External power bank charging supported |
| Light Source | HD Mode: Infrared MEMS Fast Mode: Infrared VCSEL |
| Capture Frame: | HD Mode: up to 15 fps Fast Mode: up to 20fps |
| IR Camera Resolution: | HD Mode: 2MP Fast Mode: 1.3MP |
| Color Camera Resolution: | 48 MP |
| Outdoor Scan: | Yes |
| Scanner Size: | 180mm*95mm*26.5mm (L*W*H) |
| RAM: | 32 GB LPDDR4 Memory |
| Power Charger: | 65W fast charging, supports PD/PPS protocols |
| Touchscreen: | 6.4” 2K OLED |
| IMU: | 6 DoF |
| Operating Humidity Range: | 0 to 90% RH (non-condensing) |
| Protection Grade: | IP50 |
| Supported OS: | No computer required for 3d scanning operation;
StarVision（Data processing program on PC）：Windows10/11(64-bit); macOS Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple chip ) |
