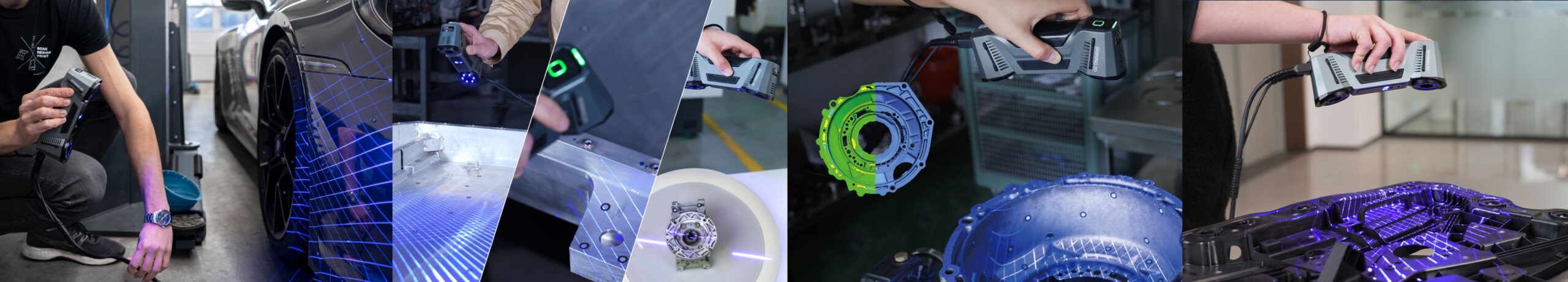

FreeScan Combo Series
- Multifunctional Metrology Laser 3D Scanner
- Features blue laser and infrared light
- Delivers an accuracy of 0.02 mm
- Designed for power and ergonomic efficiency
Compact and Powerful Metrology Handheld 3D Scanner
Dual Light Sources
- Blue Laser + Infrared VSCEL Technology
- Light Weigh only Up to 620g
4 Modes
- Multi- Line Scanning
- Single -Line Scanning
- Fine Scanning
- Infrared Scanning
Accurate Up to 0.02mm
- Scan at Speeds of Up to 3,600,000 points/ sec
Applications
- From inspection, reverse engineering ,and product design to additive manufacturing.
Blue Laser & Infrared Light
The advanced integration of blue laser and infrared light guarantees precise results across diverse applications, enhancing both efficiency and quality.
Four 3D Scanning Modes for Versatile Workpiece Coverage
- Multiple-line mode: Offers 26 or 50 laser lines for comprehensive scans.
- Fine scanning mode: Utilizes 7 parallel laser lines to capture intricate details.
- Deep hole scanning mode: Employs a single laser line for precise deep hole measurements.
- Infrared light mode: Enables fast scanning without the need for markers.
A Smart Solution for Metrology
The FreeScan Combo Series’ laser scanning modes deliver industrial-grade accuracy of 0.02 mm*, making it perfectly suited for metrology applications.
*As per VDI/VDE 2634 standards, sphere-spacing error is evaluated using traceable length artifacts and markers, measured at various positions and orientations within the working volume. Testing is conducted in an ISO/IEC 17025:2017-certified accuracy lab under controlled environmental conditions: temperature 20 ± 0.5°C and humidity 40–60% RH.
Fast Scan Speed
The multiple-line mode (FreeScan Combo + version) projects up to 50 laser lines and achieves scanning speeds of up to 3,600,000 points per second.
Powerful and Ergonomic
The FreeScan Combo Series features a compact, lightweight, and ergonomic design, ensuring convenience and ease during 3D scanning.
Its optimized camera angle enhances suitability for narrow and complex environments, enabling swift data capture in seams.
Infrared Light Scanning
The infrared light scanning mode is perfect for feature-rich workpieces, enabling fast and efficient capture without requiring markers.
TECHNICAL SPECIFICATIONS
| Model | FreeScan Combo Series | |
| Scan modes | Laser | Infrared |
| Light source | FreeScan Combo+: 50 laser lines FreeScan Combo: 26 laser lines 7 parallel laser lines 1 single laser line |
VCSEL |
| Scan speed | Laser: 3,600,000 points/s | 1,860,000 points/s | 2,250,000 points/s |
| Working distance | 300 mm / 200 mm | 300 mm |
| Scan accuracy | Up to 0.02 mm | Up to 0.05 mm |
| Volumetric accuracy (1) | 0.02 + 0.033 mm/m | |
| Scan depth | 360 mm | 1240 mm (2) |
| Max. FOV | 520 × 510 mm | 600 × 600 mm |
| Point distance | 0.05 ~ 10 mm | 0.1 ~ 3 mm |
| Laser class | Class II (eye-safe) | |
| Connectivity | USB 3.0 | |
| Dimensions | 193 × 63 × 53 mm | |
| Weight | 620 g | |
| Power input | 12V, 5.0A | |
| Operating temperature range | -20 ~ 40°C | |
| Operating humidity range | 10 ~ 90% | |
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50 | |
| Recommended computer configuration: | OS: Windows 10 Pro (64-bit) / Windows 11 Pro (64-bit) CPU: 13th Gen Intel (R) Core (TM) i7–13650HX 2.6 GHz or above Video card: NVIDIA GeForce RTX 4060 or above Video memory: 8GB or above RAM: 64GB or above, DDR5 dual-channel USB port: USB 3.0 |
