The G5Ultra Pellet 3D Printer utilizes cost-effective thermoplastic pellet feedstocks, ensuring high-speed production. Key features include a nozzle temperature of up to 420℃, rapid hot bed heating to 120℃, and a screw extruder design, accommodating a wider range of materials. Designed to cater to the demanding needs of educational and academic research, design studios, prototyping and more.
Key Characteristics and Process Control

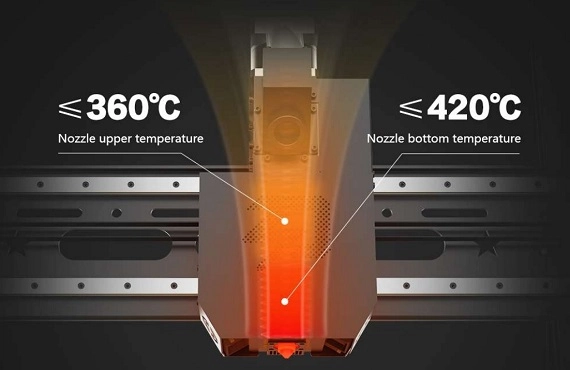

Nozzle Temperature up to 420℃
The next generation extruder (with segmented heat zones) can fit nozzles in diameters ranging from 0.4mm up to 3mm, and the machine can print pellets/granules measuring 2-5mm in diameter. The particles are fed into the extruder from a 3 liter hopper, ensuring a ready supply of feedstock for its huge deposition rate. It heats up to a toasty 420°C, enabling the printing of a wide range of materials.

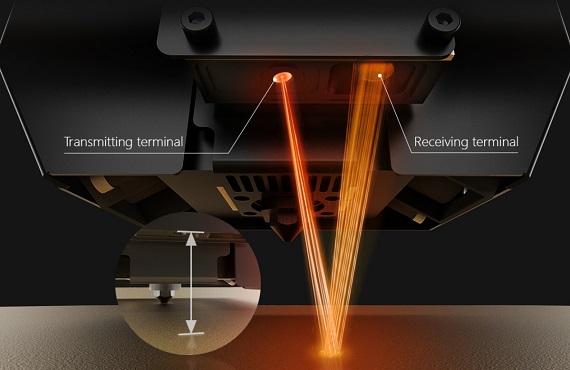

Intelligent Laser Ranging
Using laser sensor non-contact measurement technology, the leveling time can be significantly shortened and the leveling accuracy can be improved; Not only ensure the real-time and high safety of the leveling operation under the high temperature platform, but also avoid interference with the model during the printing process.

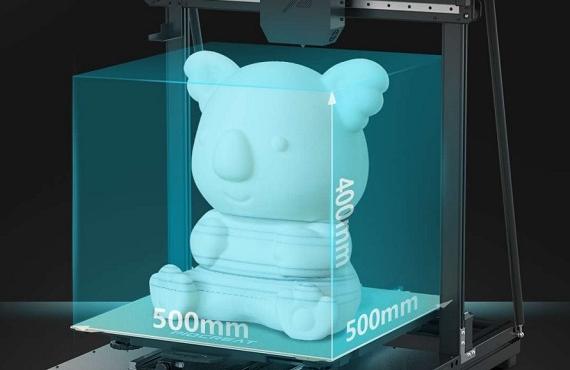

High-Speed Printing
The G5Ultra boasts desktop 3D printing speeds that reach up to 220mm/s. With regards to the flow rate of the materials, the G5 Ultra is capable of depositing a staggering 0.8kg per hour, ensuring it stands out for individuals requiring rapid production without compromising the intricacies of design or the overall quality of the final product.

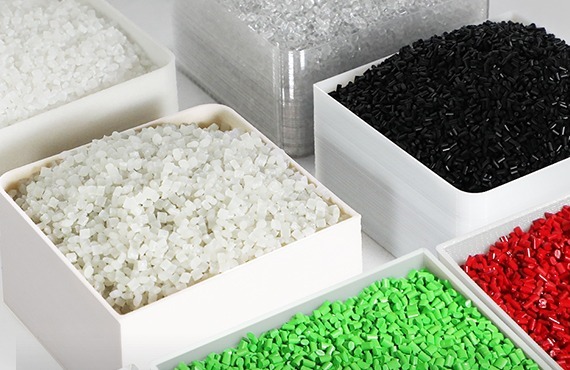

Suitable for More Materials
With its ability to heat up to 420℃, the G5Ultra Pellet 3D Printer excels in processing a wide range of thermoplastics and composites. This flexibility allows for experimenting with various pellets, including PA-CF,PA-GF,PC-CF, PLA, rPLA, PETG-GF, ABS, PS, GPPS, PP-GF, and more, enabling the creation of functional prototypes, artistic works, or educational models with desired material properties.

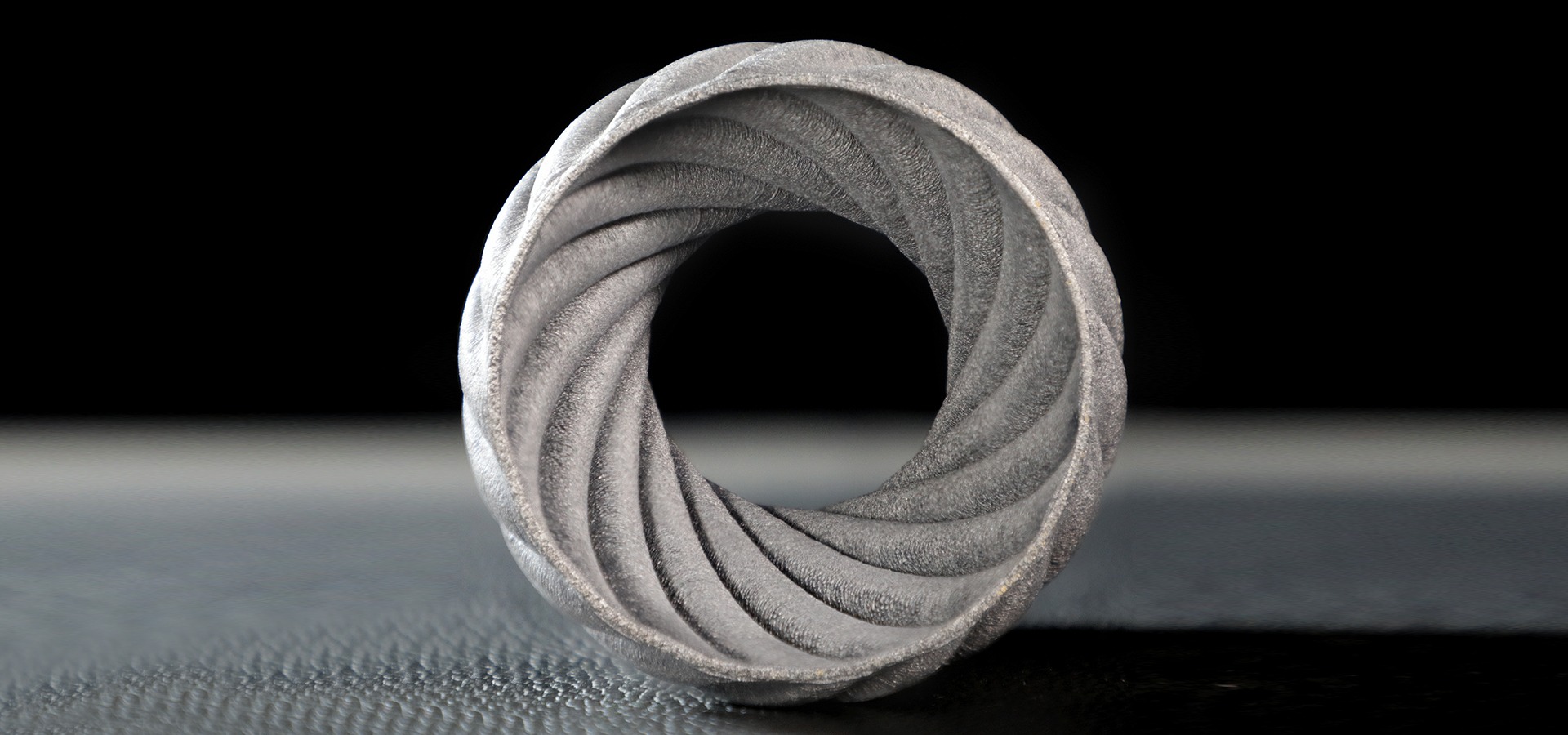

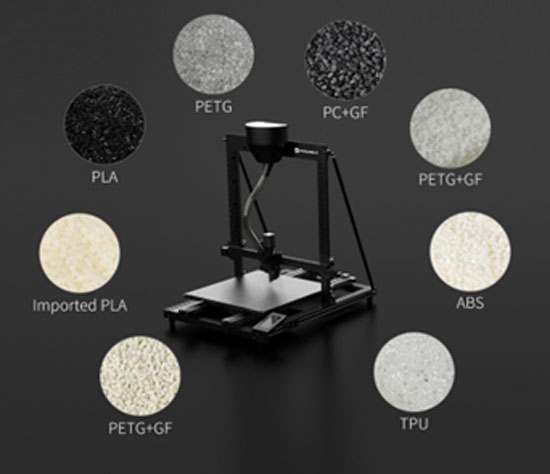

Plastic Pellet Materials
The G5 Ultra Fused granulate fabrication (FGF) pellet 3D printer offers a range of 3D printing materials includes a wide selection of thermoplastics and composites, designed to meet the specific needs of your applications in terms of flexibility, durability, rigidity, strength, stability, transparency, look and feel, temperature resistance, and more.
Why Choose FGF Pellet 3D Printer?
Shorter Lead Times
Enjoy speeds up to 10X faster than conventional filament extrusion 3D printing, drastically reducing project lead times.
Eco Friendly
Our 3D printing innovation uses pellets and shredded recycled plastic for sustainable, eco-friendly additive manufacturing alternatives.
Excellent Material Properties
Use original materials for optimal material properties, ensuring enhanced performance of printed components through superior quality.
Reduce Costs
Pellet extrusion 3D printing offers significant savings, cutting costs up to 10X compared to traditional filament-based methods.
Basic Materials
- TPU Pellet
- ABS Pellet
- PLA Pellet
- PETG Pellet
- PP Pellet
- ABS-CF Pellet
- PC-CF Pellet
- PETG-CF Pellet
- PAHT-CF Pellet
