The MS01 SE High-Temperature Pellet 3D Printer is the latest addition from PioCreat. With an industrial-grade nozzle temperature of up to 400°C and a part size of up to 650mm, this printer delivers maximum performance for engineering materials, all produced using industry-standard pellets. It is ideal for prosthetic and orthotic applications, ensuring optimal support and comfort, such as scoliosis corsets.
Product Highlights
-
Fully-enclosed Chassis
-
Comprehensive Orthosis Compatibility
-
Material Break Detection
Product Features
Reliable High Performance

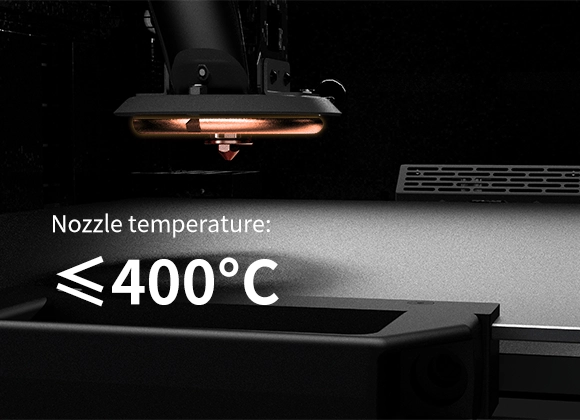

The nozzle temperature reaches 400C, supporting high-temperature materials printing.
Material Run-out Detection
Automatically pauses when out of material. Resumes printing when new material is fed.
Supports All Types of Orthotics
Printing size: 500×500×650mm, Capable of accommodating more sizes of orthotic printing.
Fully-enclosed Chassis
Effective maintenance of intracavity temperature for higher print success rates.
TECHNICAL SPECIFICATIONS
MS01 SE
| Forming process | FGF |
| Printing size | 500*500*650mm |
| Leveling method | Auxiliary leveling |
| Nozzle diameter | 3.0mm standard (optional 2.0,2.5mm) |
| Slice thickness | 0.2-1.5mm |
| Printing accuracy | 100±0.5mm |
| Printing speed | 35-100mm/s |
| Nozzle temperature | <400C |
| Hotbed temperature | <120℃ |
| Material diameter | 2-5mm |
| Filaments | YH-PP1022 |
| Rated power | 2500W |
| Input voltage | 100-240V~, 50/60Hz |
| Power loss recovery | Yes |
| Filament detection | Yes |
| Print method | USB disk |
| Supported file format | STL/OBJ/3MF |
| Slicing software | Piocreat Slicer |
| Operating system | Windows/Mac OS/Linux |
| Language | English/中文 |
| Machine size | 1110×970×1595mm |
| Package size | 1061×1160×1780mm |
| N.W. | 260kg |
| G.W. | 375kg |
