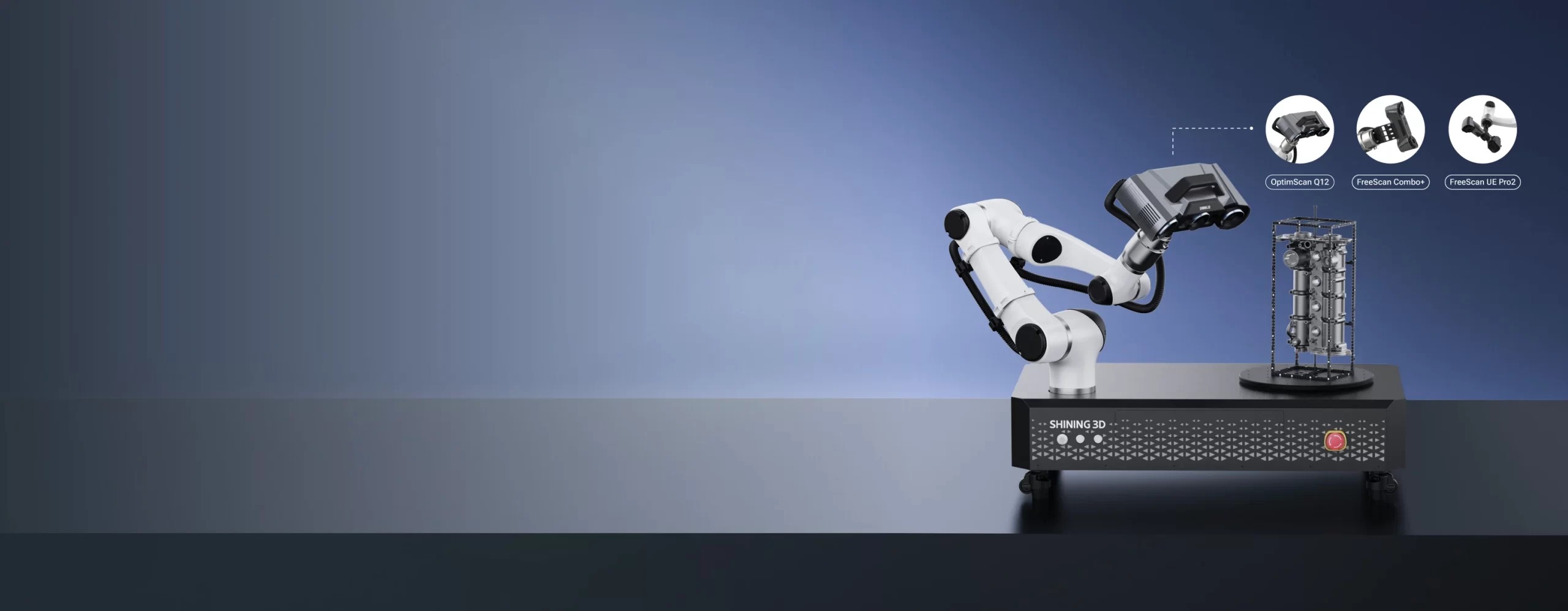

RobotScan Series
RobotScan series is engineered for replacing manual operations with robotic automation. It enables fully automated and standardized 3D scanning to rapidly acquire precise geometric data and automatically generate detailed inspection reports.
The system supports customized configurations for specific inspection needs and integrates with MES systems for real-time feedback and secure data management, enhancing the efficiency and quality of intelligent manufacturing.
Modular Design for Flexibility and Scalability
Multi-System Integration
High-Accuracy Full-Field 3D Measurement
Streamlined Operation & Installation
High Efficiency Inspection
Standard Automation Solutions
The standardized automation solution of RobotScan Series is designed to meet the typical inspection demands in modern manufacturing. It supports both high-precision fringe projection scanners and handheld laser scanners.

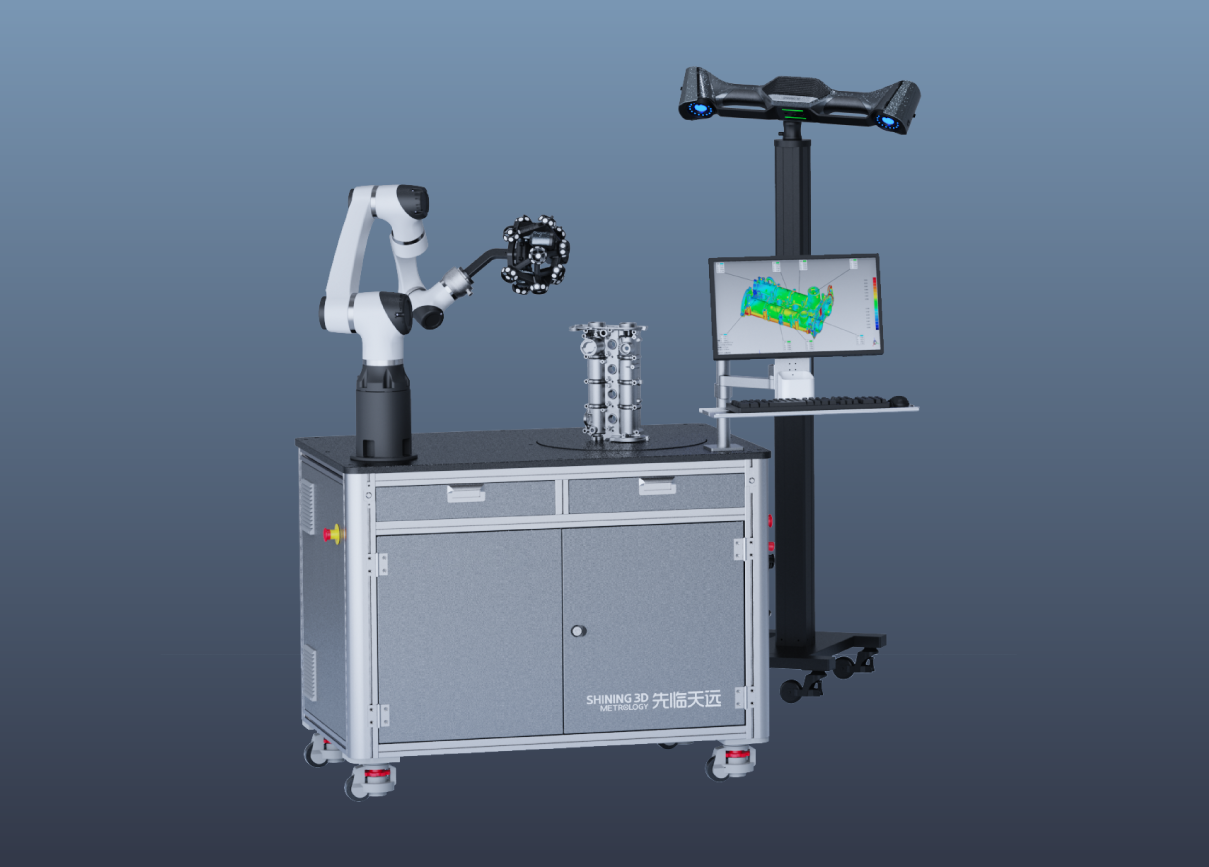

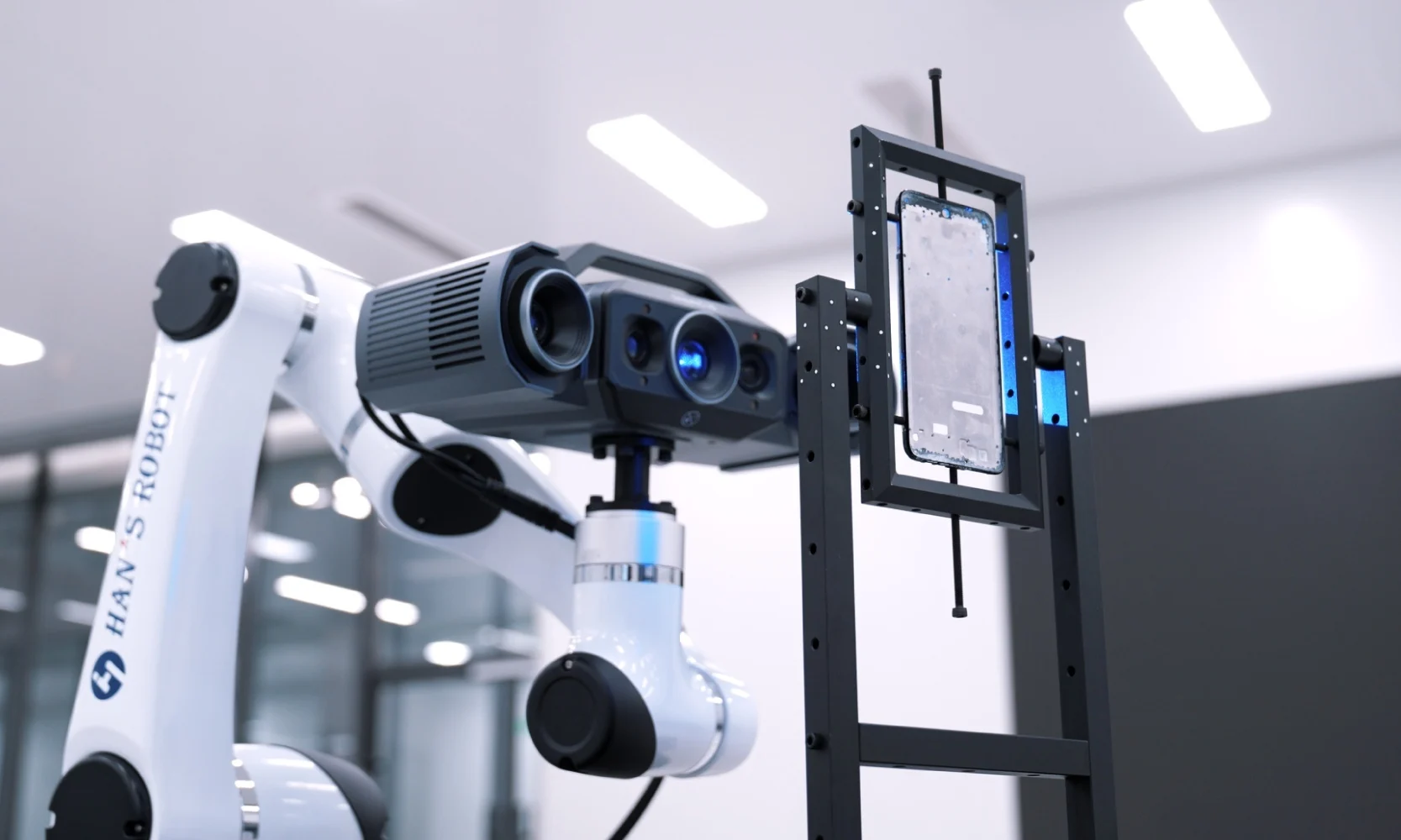

RobotScan Q12
- Fringe projection technology with the best accuracy and high detailed data
- Ideal for small-sized part measurement with complex surfaces, geometries, or sharp edges
- Fine -detail components such as airfoils, brackets, connectors, gears, housings, and electronic components
- Automated optical 3D measurement solution with high repeatability and high efficiency for mass-production inspection

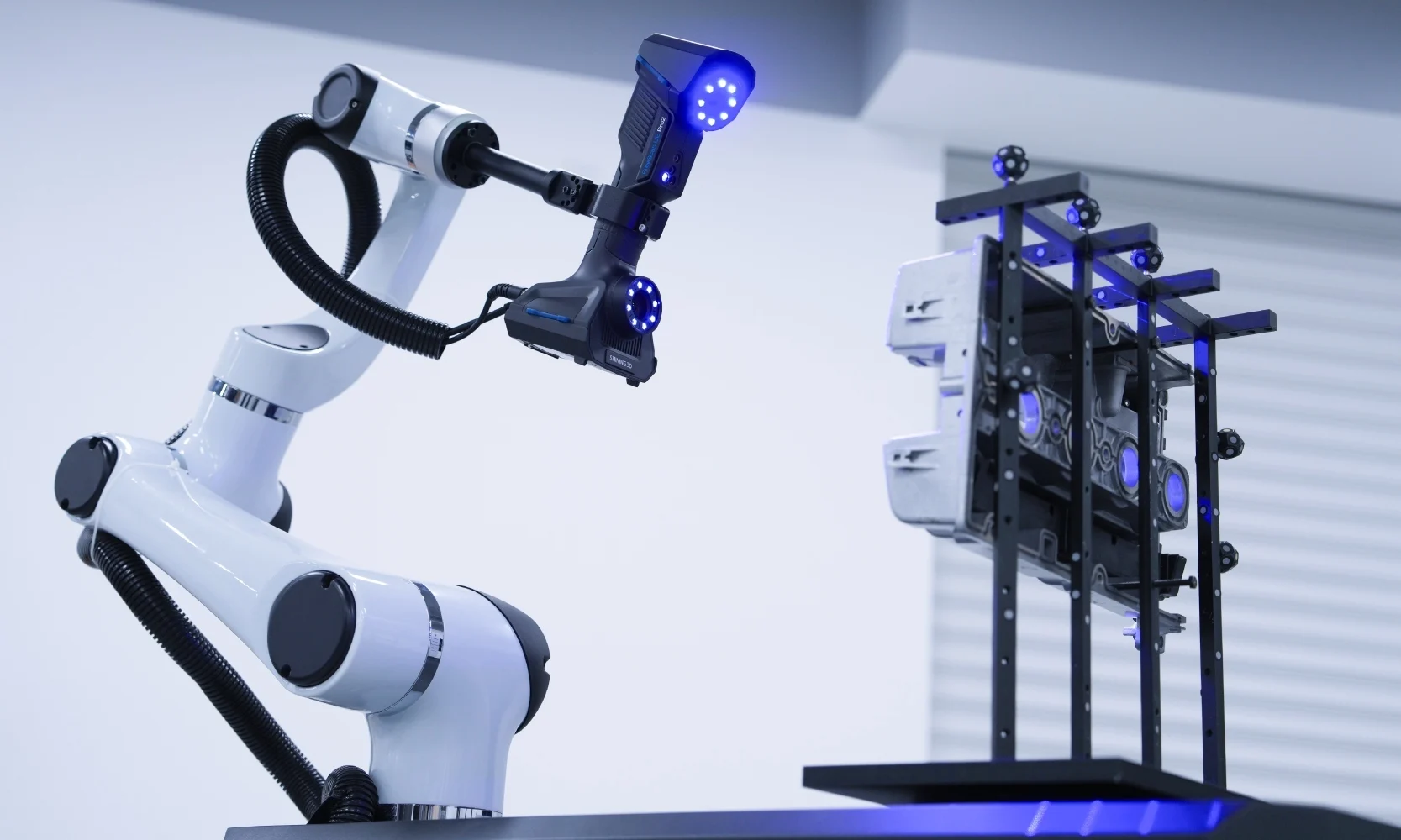

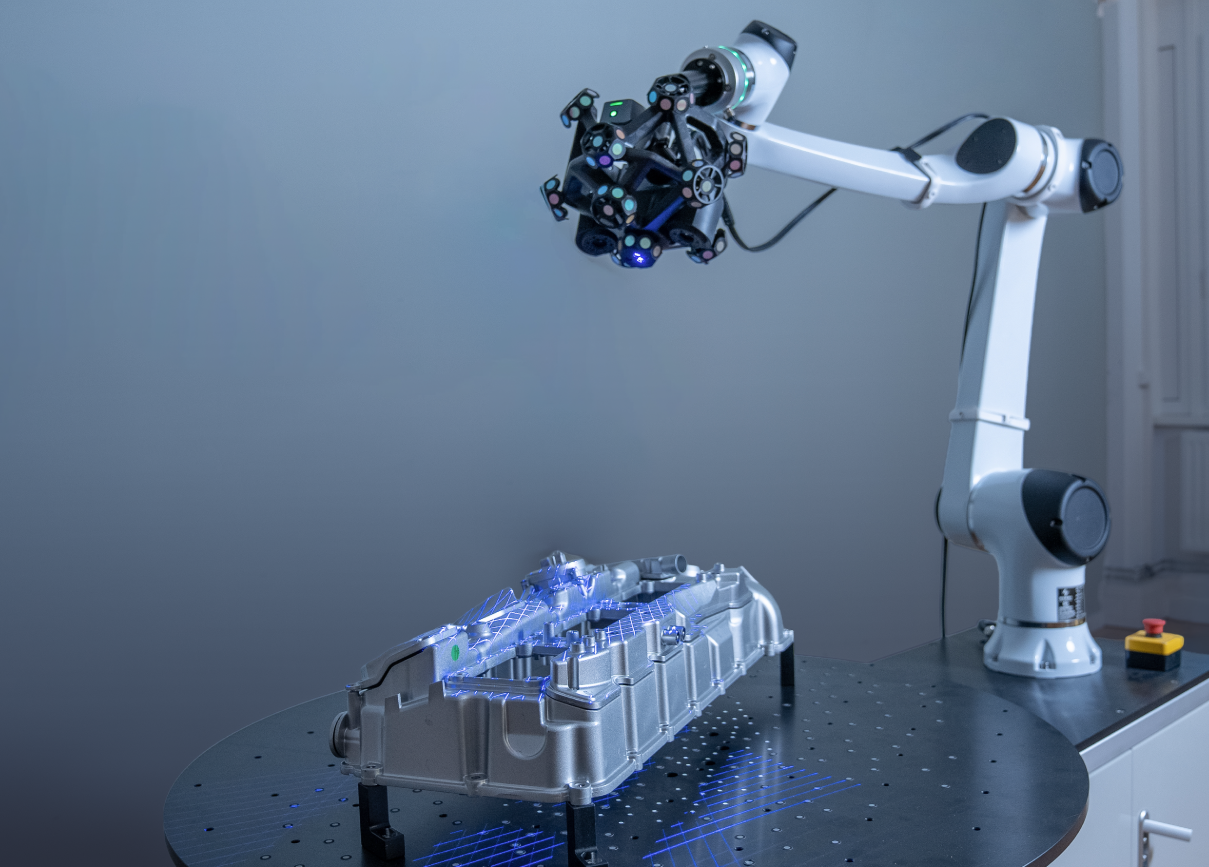

RobotScan UE Pro2
- Handheld blue laser scanning technology with strong material adaptability to black, shiny, and reflective surfaces
- Suited for small and medium sized sheet metal parts, casting housing, machining parts, mold components
- Wireless and Wired connectivity for flexible on-site integration
- Automation optical measurement solution with excellent balance of accuracy and efficiency
RobotScan Combo+
- Hybrid light source delivers excellent versatility across different part types.
- Efficient batch inspection of the small-to-medium-sized castings and machined parts
- Mixed-size components such as covers, trim pieces, assemblies, medium castings
- Cost-effective automated 3D scanning solution for manufacturers with diverse inspection needs.
Control & Inspection Software
RobotScan Control

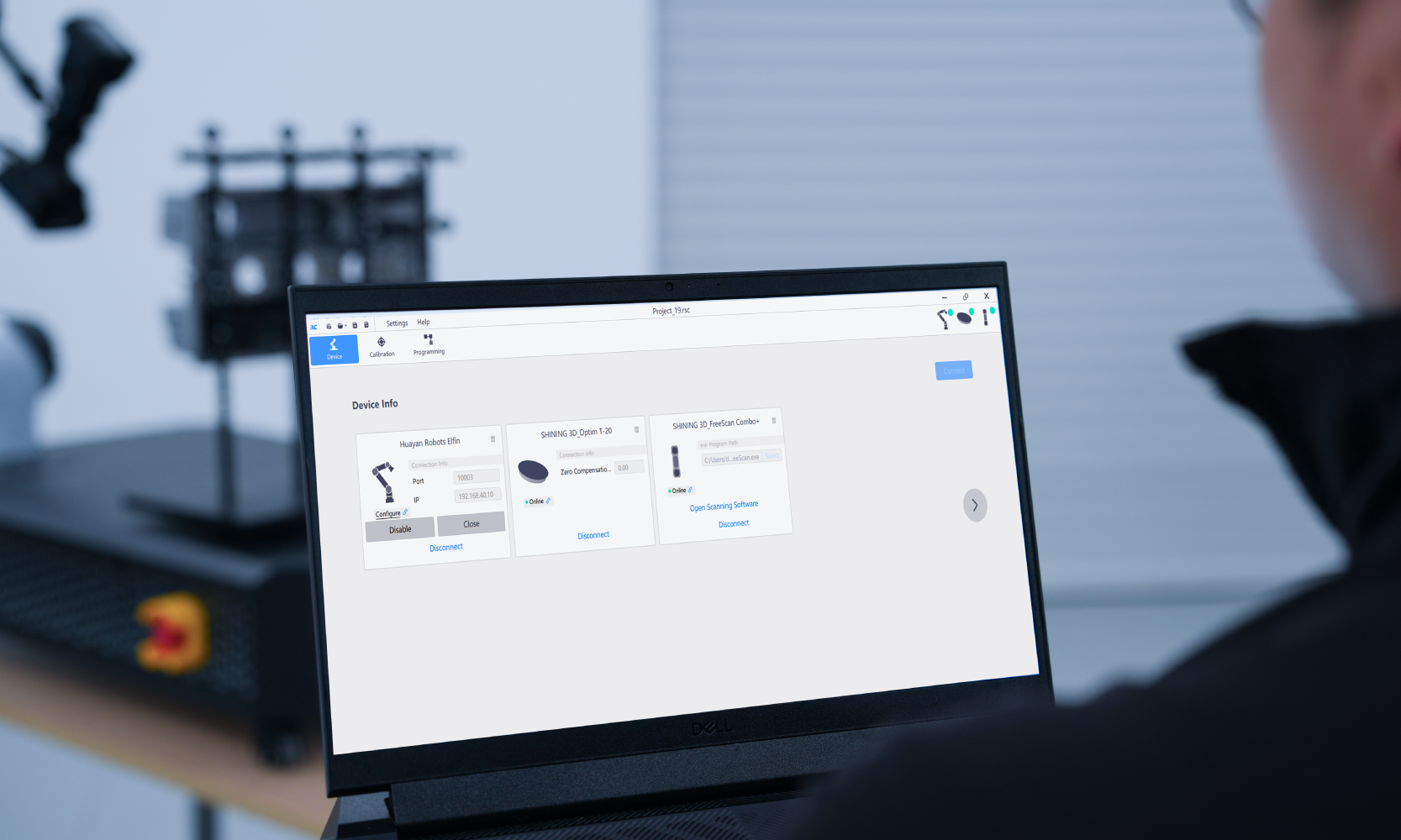

RobotScan Control is a professional automation software purpose-built for industrial applications. It enables direct control of collaborative robot arms, servo turntables, and 3D scanners to execute the complete workflow – from path programming to 3D scanning and inspection. Featuring a process-oriented interface, the software offers intuitive operation and a low learning curve, greatly improving automation efficiency and stability.
- Certified metrology accuracy: Verified according to VDI/VDE 2634 Part 3 and aligned with ISO 10360 technical standards, ensuring consistent, traceable measurement results (0.02 + 0.03 mm/m) in any on-site environment.
- Blazing-fast computing processor: Powered by a high-performance processor, FreeScan Omni Series leverages an edge-based computing module for rapid 3D scanning and data processing, significantly enhancing workflow efficiency.
SHINING3D Inspect

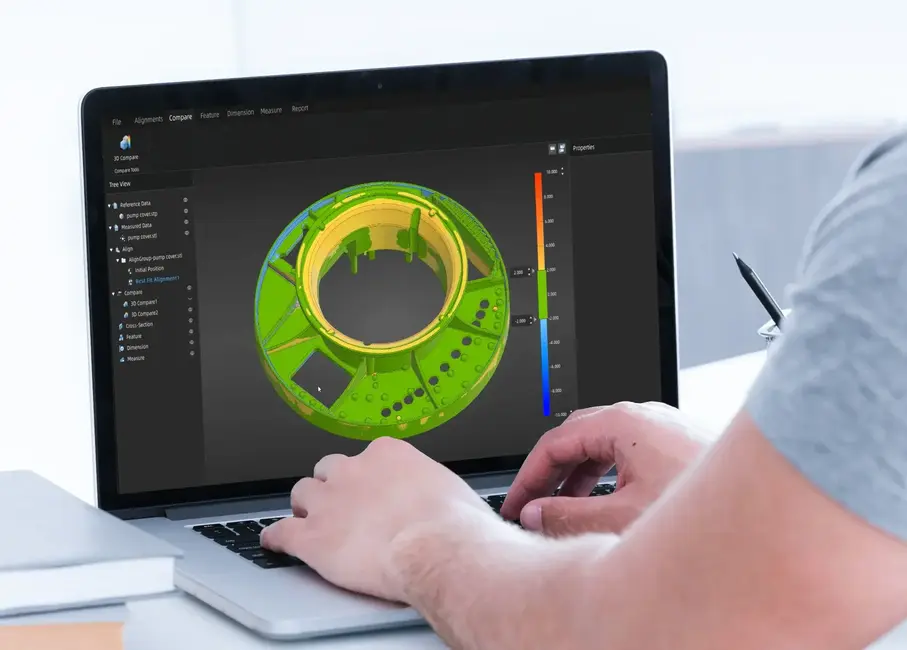

SHINING3D Inspect is an industrial inspection software certified by PTB for measurement accuracy. It processes high-accuracy 3D scan data to perform detailed 3D comparison, measurement, and inspection report generation. The software delivers reliable, traceable inspection results that meet the stringent demands of modern manufacturing and quality control.
RobotScan Series Technical Data
| Measurable object size | ≤ 500 mm |
| Robot type | Cobot, Huayan Robotics |
| Dimensions | 1030 × 670 × 270 mm |
| Power supply | 100 – 240V (Single-phase, 10A) |
| Turntable load capacity | ≤ 20 kg |
| Robot working radius | 800 mm |
| Weight | 70 kg |
| Safe working space | 2400 × 2400 × 1600 mm |
Customized Solutions
RobotScan series also offers a fully customizable configuration to meet the diverse 3D measurement needs of multiple industries. Components such as different brands of robotic arm, SHINING 3D scanner, turntable, fixtures, and control and inspection software can all be tailored to specific application requirements.
RobotScan Trak Nova (Sample 1)
- Extended-reach robotic arm for increased scanning coverage
- Larger turntable supporting bigger and heavier parts
- Ideal for manufacturers handling medium-to-large industrial components
RobotScan Trak Nova (Sample 2)
- Ideal for small-to-medium-sized workpieces
- Mobile tracking cart enables flexible workstation arrangement
- Fast deployment and easy relocation between inspection areas

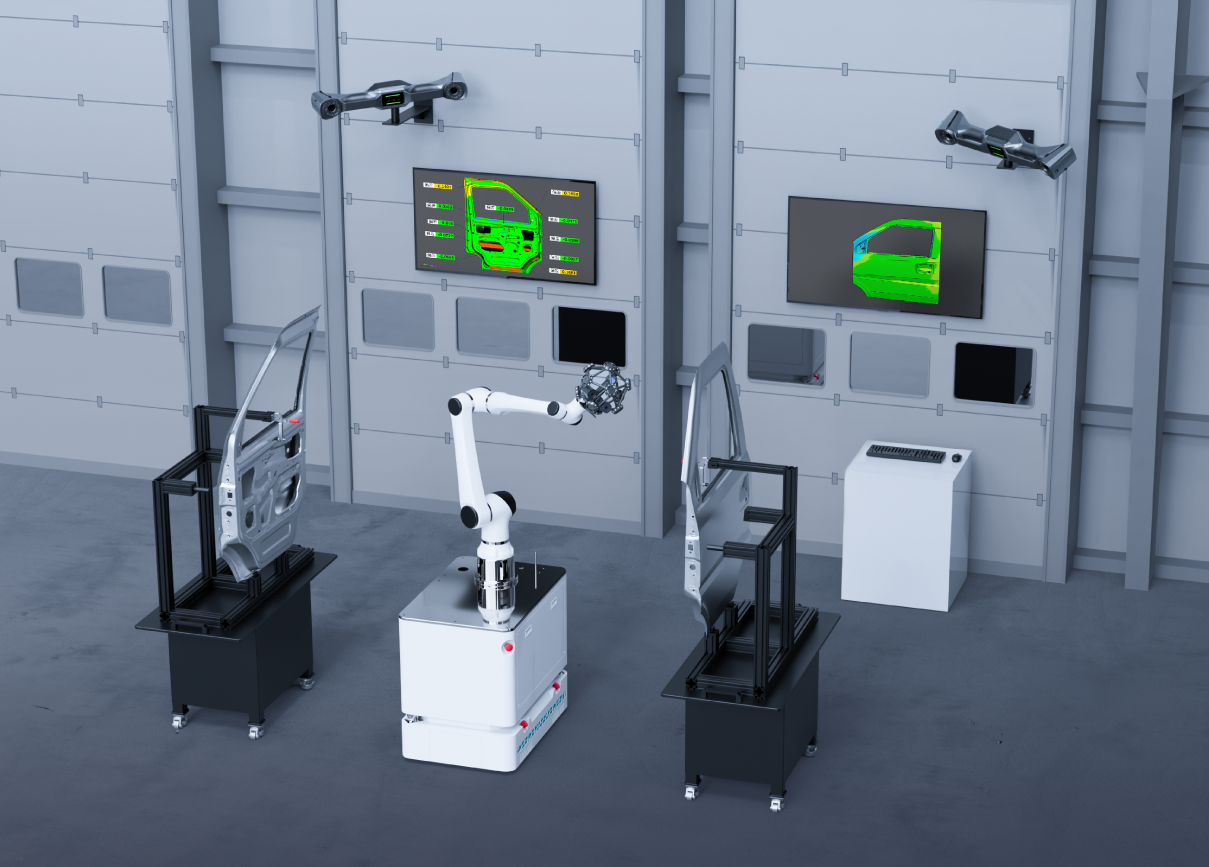

RobotScan with AGV
- Integrates robotic scanning with autonomous transportation
- Enables automatic movement between workstations
- Ideal for multi-line and multi-station production environments
- Medium-to-large industrial assemblies
- Supports scalable smart factory deployments
Automated Loading & Unloading System
- Fully automated material handling from part loading to 3D scanning and unloading
- Reduced manual intervention for a more efficient, safety and consistent inspection workflow
- Designed for continuous batch inspection and high-throughput manufacturing environments
- Seamless integration with factory conveyors, AGVs, and production lines

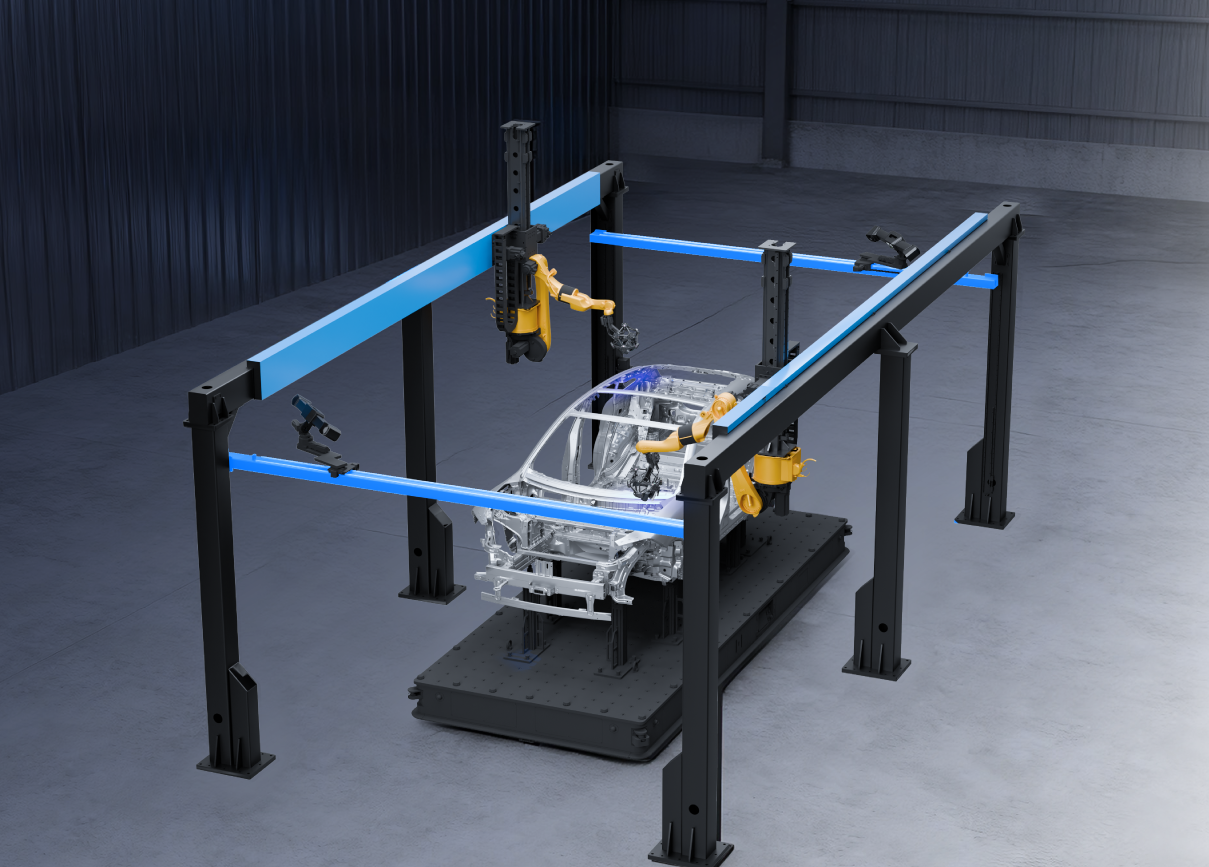

RobotScan with Servo Gantry
- Significantly larger measurement volume than standard robot cells
- Ideal for oversized parts beyond robot-arm reach
- Excellent repeatability over long travel distances
- High-precision positioning across large workspaces
- Flexible multi-axis gantry configurations
Which components of RobotScan Series can be customized?
01 SHINING 3D Scanner
The scanning module can be configured with different SHINING 3D metrology-grade scanners.
02 Turntable
Turntables can be customized to support different load capacities, diameters, and rotation modes for small parts, large components, or heavy industrial workpieces. Integrated synchronization ensures smooth, automated multi-angle data capture.
03 Robot Arm
Robotic arms from various brands and specifications can be selected based on reach, payload, installation direction, and repeatability. Supported Robot Brands: Huayan Robotics; Universal Robots (UR); FANUC; DOBOT Robotics.
04 AGV
AGVs can be integrated into the automation system to enable autonomous transportation of parts, fixtures, or scanning stations between production processes. This enhances workflow efficiency and supports flexible manufacturing environments with minimal manual intervention.
05 Servo Gantry
Servo gantry systems provide an alternative or complementary motion platform for automated scanning, especially when handling large-scale components or covering extended workspaces. With precise multi-axis movement, servo gantries ensure stable and repeatable scanning performance across large inspection areas.
Automated 3D Scanning in Action

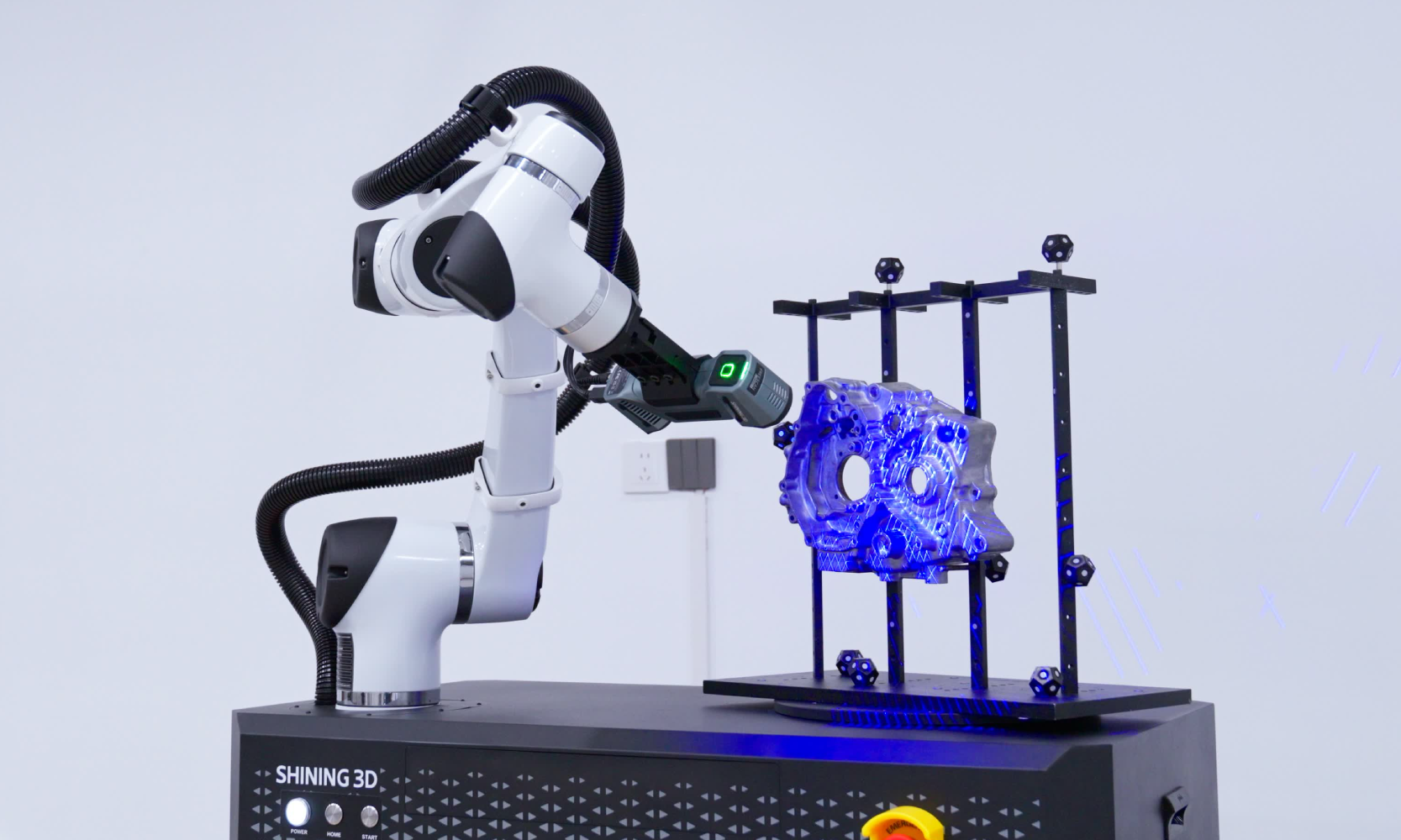

RobotScan Combo+: Automated 3D Scanning in Action

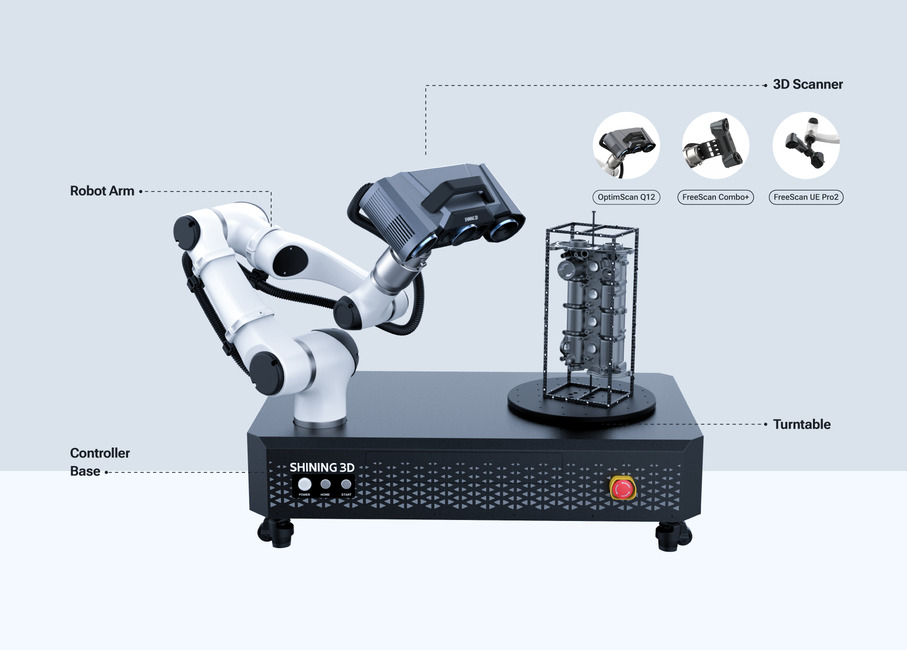

Built for the era of Industry 5.0, RobotScan combines a 3D scanner, robotic arm, controller base, and turntable into one modular solution. With the Robot Control software, setup takes just one click, calibration is fully automated, and workflows can be created with intuitive visual programming.

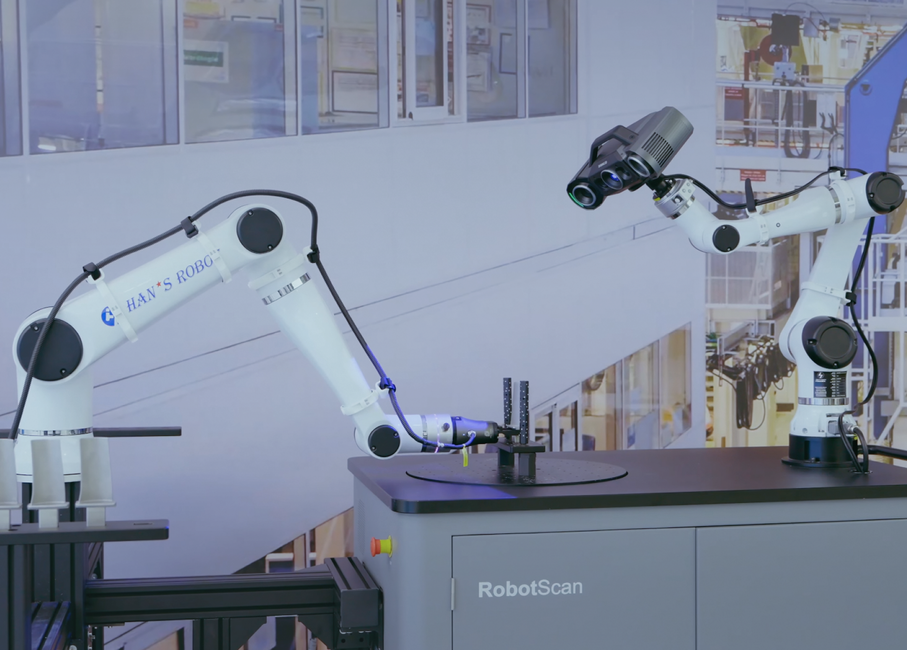

RobotScan Q12 and Loading / Unloading System
RobotScan Q12 scans parts automatically and handles loading and unloading tasks without manual intervention. The robot arm and scanner work together to pick up parts, scan them in 3D, and then unload them, demonstrating industrial automation in manufacturing or inspection workflows.
