Trak in, Markers out
EinScan Trak is the world’s first wireless, dual-form, marker-free tracking system, delivering a portable, professional 3D digitization solution for reverse engineering, cultural heritage preservation, automotive customization, and large-object digitization.
- Tracking & Handheld Dual Modes
- Marker-Free Wireless 3D Scanning
- 38 + 7 + 1 Laser Lines
- 5MP Texture Camera

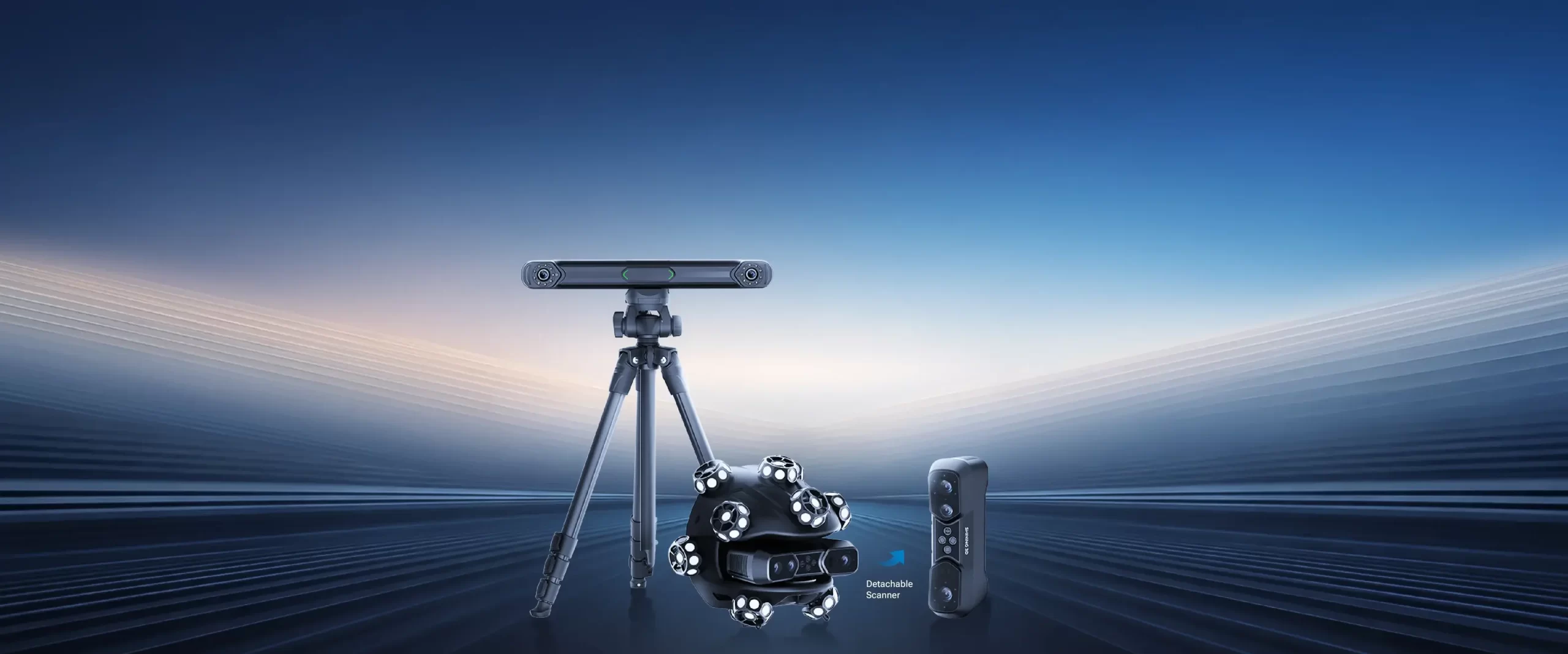

Detachable Scanner
Wireless
Marker-Free

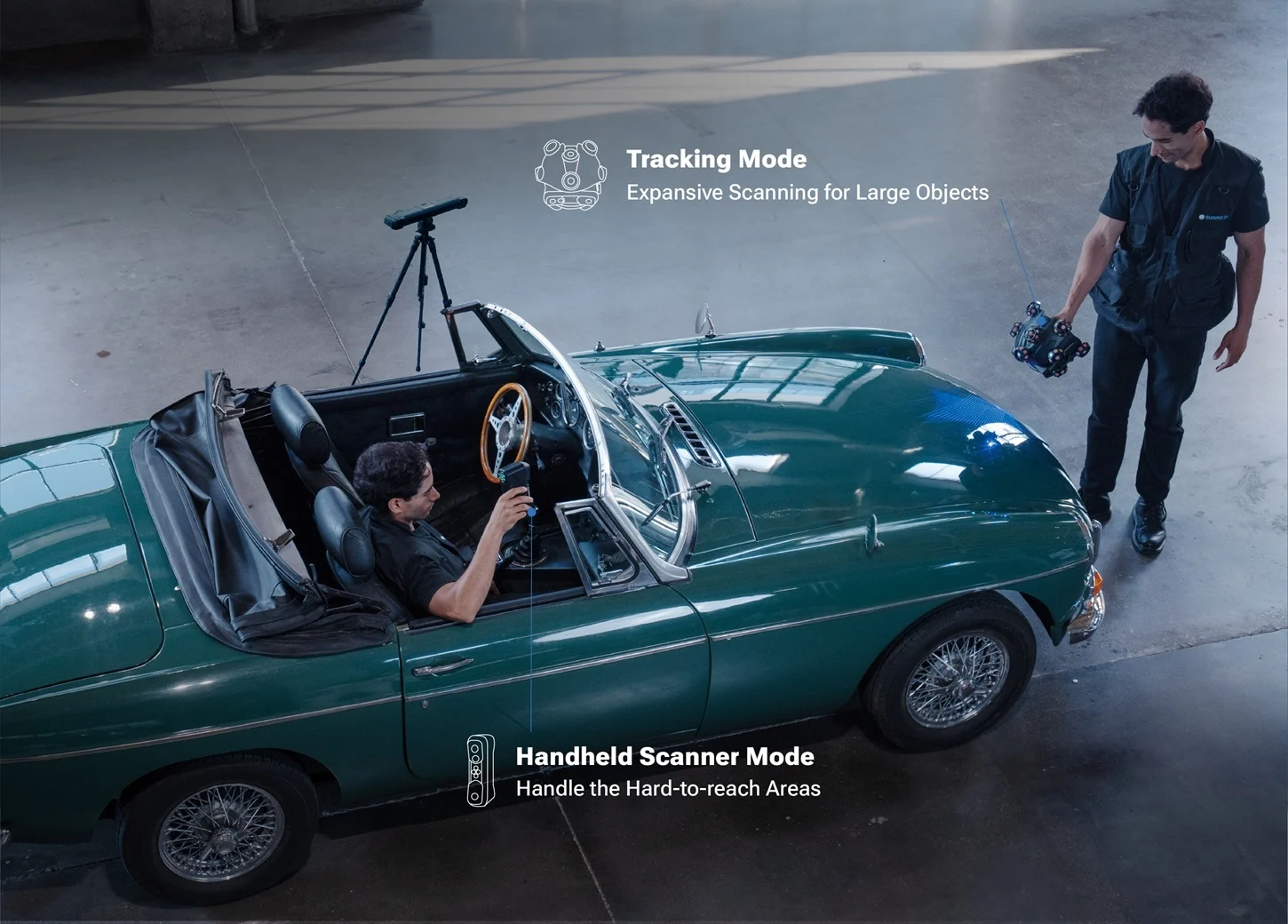

One System, Two Work Modes
Choose the right setup for your applications—detachable, easy to calibrate,and ready with one-click startup. Enables seamless switching and flexible combination of tracking mode and handheld scanner mode, supporting real-time adjustment during scanning and cross-mode resolution merging.
Wireless Freedom, Higher Efficiency

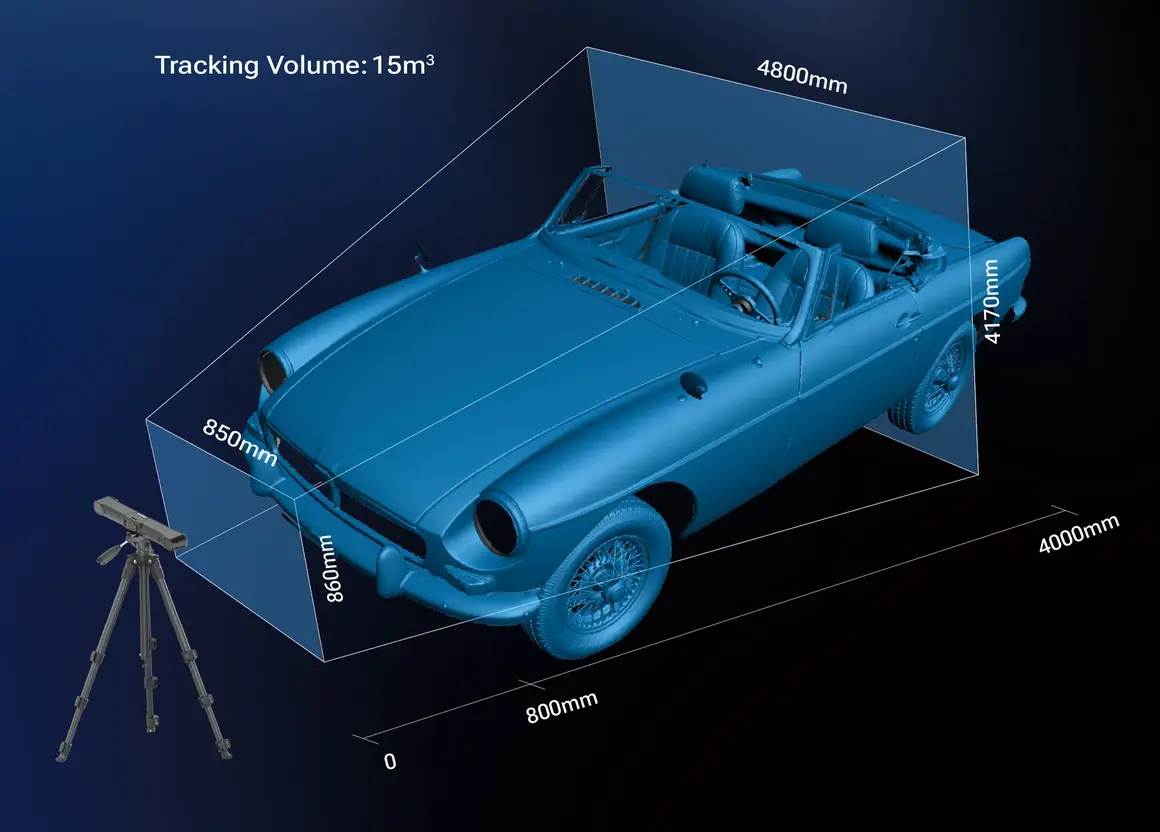

Equipped with Wi-Fi 6 module supports wireless scanning. Connects via an independent LAN and pairs automatically at startup. Enjoy 15m³ ultra-large tracking volume, giving you more freedom to move, capture, and create with higher efficiency.
*A router is required and included as standard.

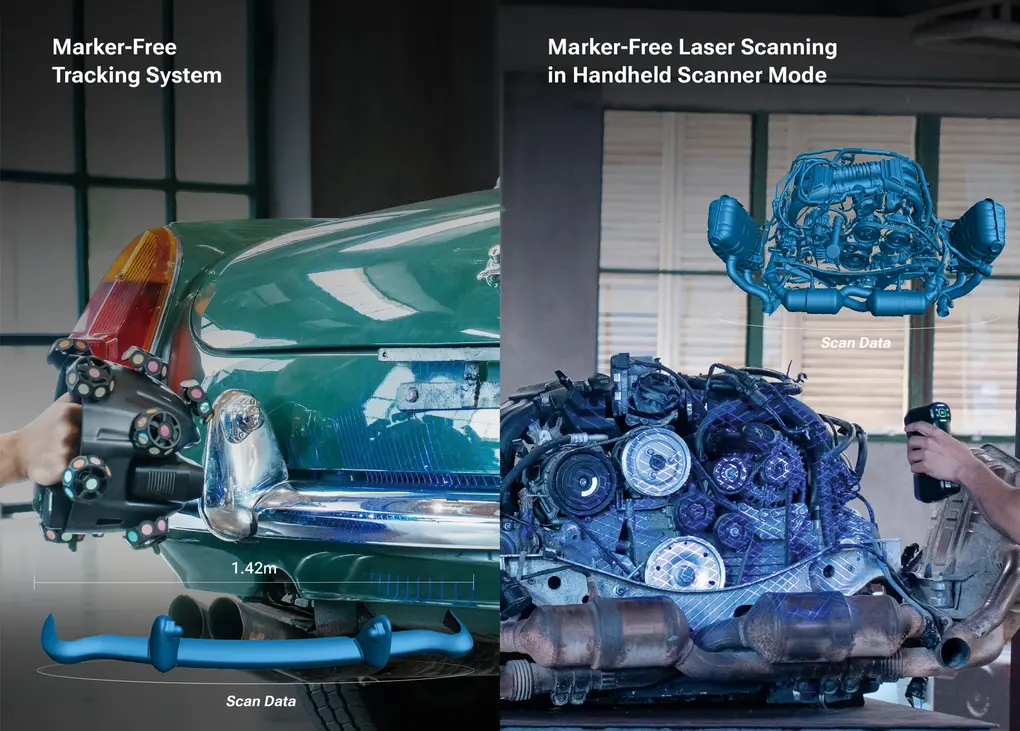

All-Scenario Marker-Free 3D Scanning
Marker-Free Tracking System: EinScan Trak features built-in retroreflective markers on its spherical scanner module, enabling the wireless tracker to precisely monitor the scanner’s position in real time.
Marker-Free Laser Scanning in Handheld Scanner Mode: For feature-rich surfaces, handheld scanner mode delivers
a smooth, marker-free scan experience.

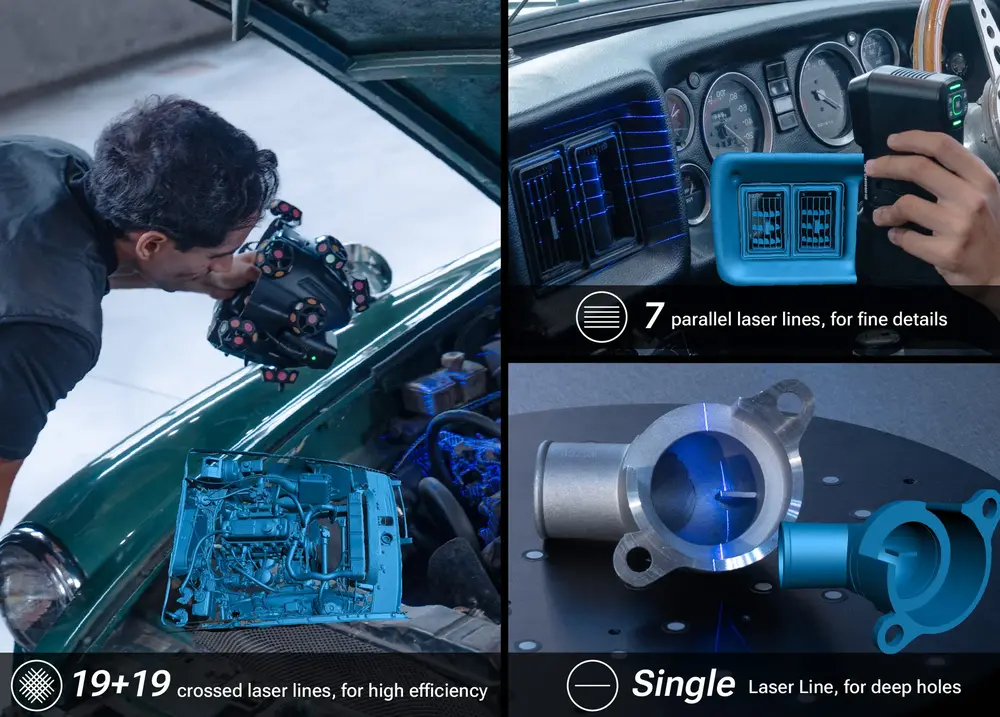

Three Scanning Modes for Diverse Needs
19+19 crossed laser lines acquire high-quality data from large objects quickly, delivering workflow efficiency and scanning flexibility.
7 parallel laser lines capture lines and sharp edges on automotive components with greater clarity.
Single laser line reaches deeper to capture fine details with 1:4 diameter- depth ratio, supporting applications such as vehicle reverse engineering.
Adaptable to Every Task
- Ideal for Various Materials
Scan black and reflective surfaces (e.g., car rims) effortlessly without any data loss. - Multi-Environment AdaptabilityReliable scanning outdoor & indoor, supports scanning under strong outdoor light up to 110,000 lux.
High-definition. True-color.
5MP HD texture scanning accurately captures object colors and material details. It breaks the stereotype that laser tracking 3D scanning lacks color, bringing the efficiency of tracking systems to cultural heritage, research, and other fields.
For Streamlined Reverse Engineering

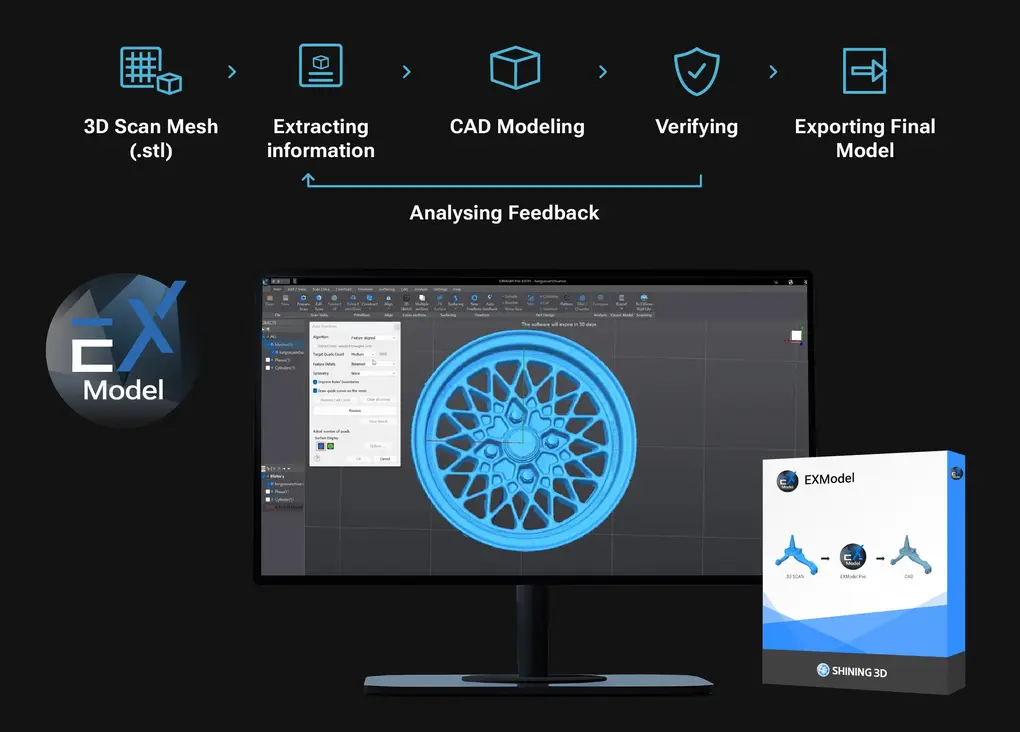

EXModel Series is a powerful gateway that simplifies CAD modeling, from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to transform a mesh into a professional-quality CAD solid model in just a few simple steps
For Precise Measurement

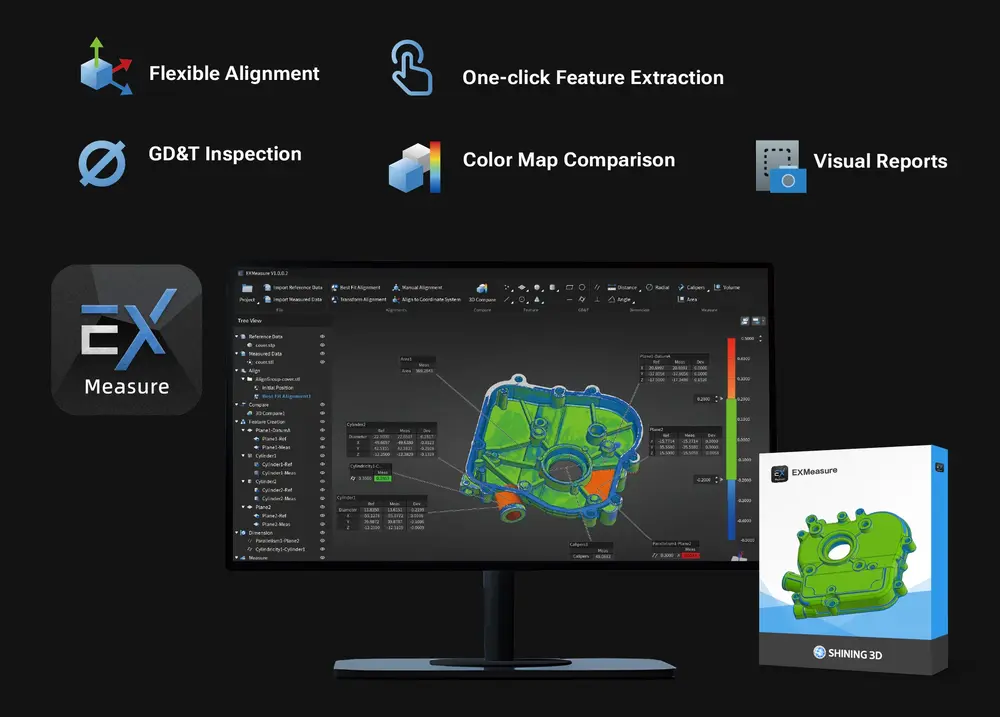

EXMeasure is a measurement software designed to work seamlessly with EinScan Trak Series, supporting digital dimensional analysis from scan data to verification.

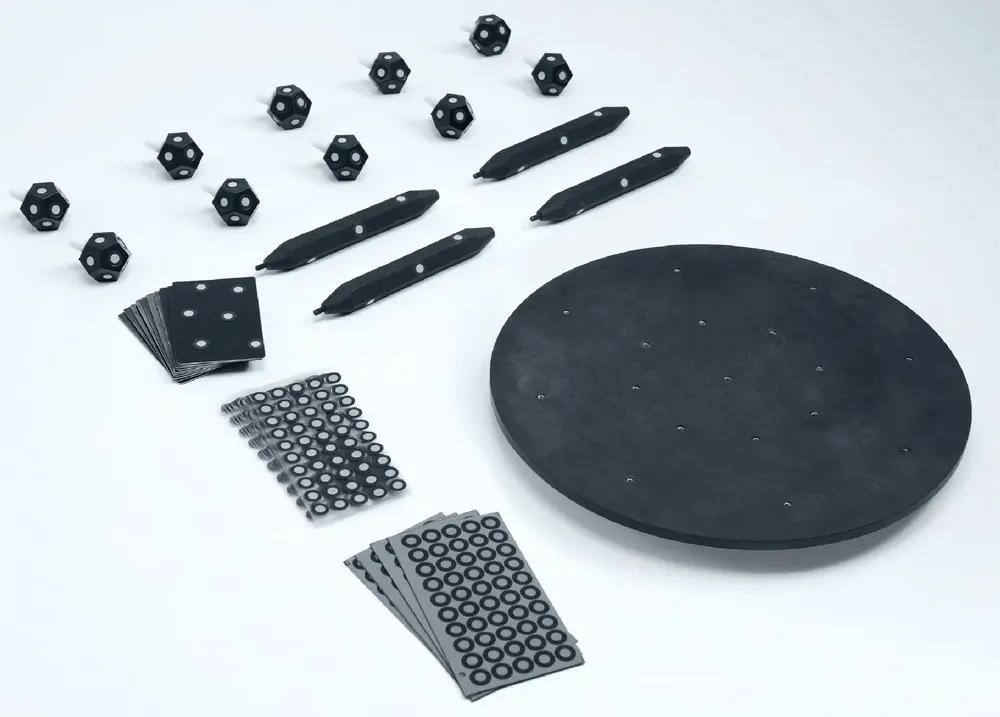

Accessories Pro Kit
A professional marker set designed to improve scan quality and tracking stability in 3D scanning workflows. It includes
- 6 mm magnetic marker balls
- Adhesive markers
- Marker cards
- Fixture columns
- A 300mm turntable.
What You Can Achieve with Our Scanners
Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
Industry-Specific Customization

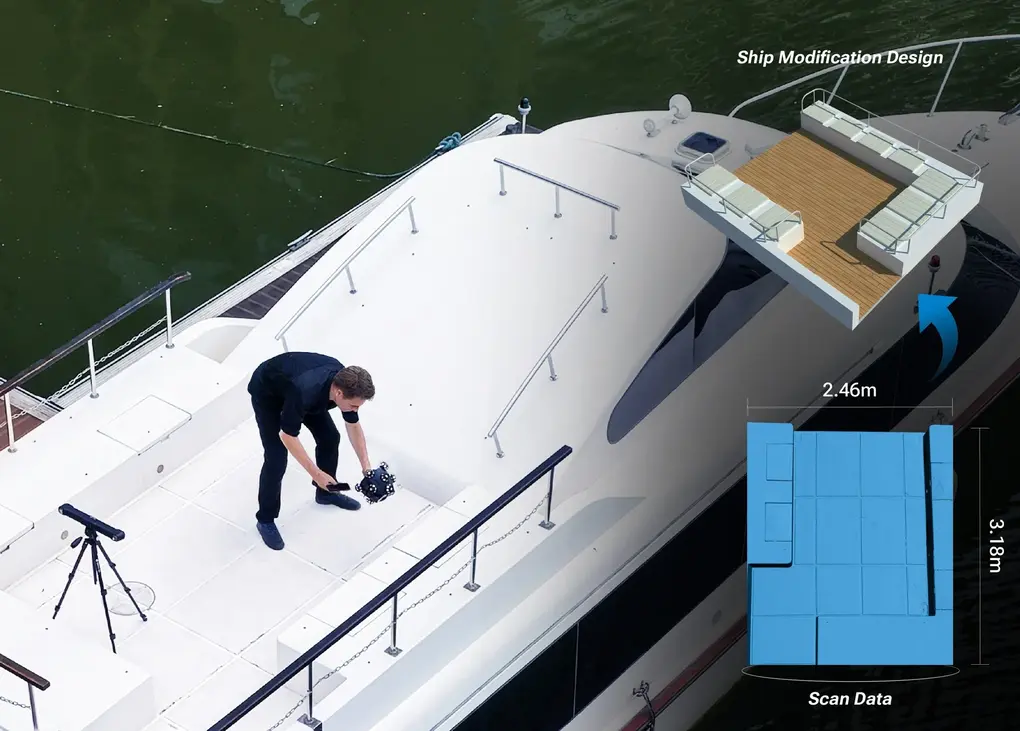

Capture large components, custom parts, and complex surfaces with a flexible marker-free workflow. EinScan Trak helps users quickly obtain accurate 3D data for reverse engineering, modification, restoration, and industry-specific customization projects.
Product & Industrial Design
Digitize prototypes, mechanical parts, fixtures, and industrial components with high efficiency and fine detail. With multiple laser modes and flexible scanning setups, EinScan Trak supports product development, design iteration, and manufacturing workflows from concept to production.
Heritage Preservation & Art

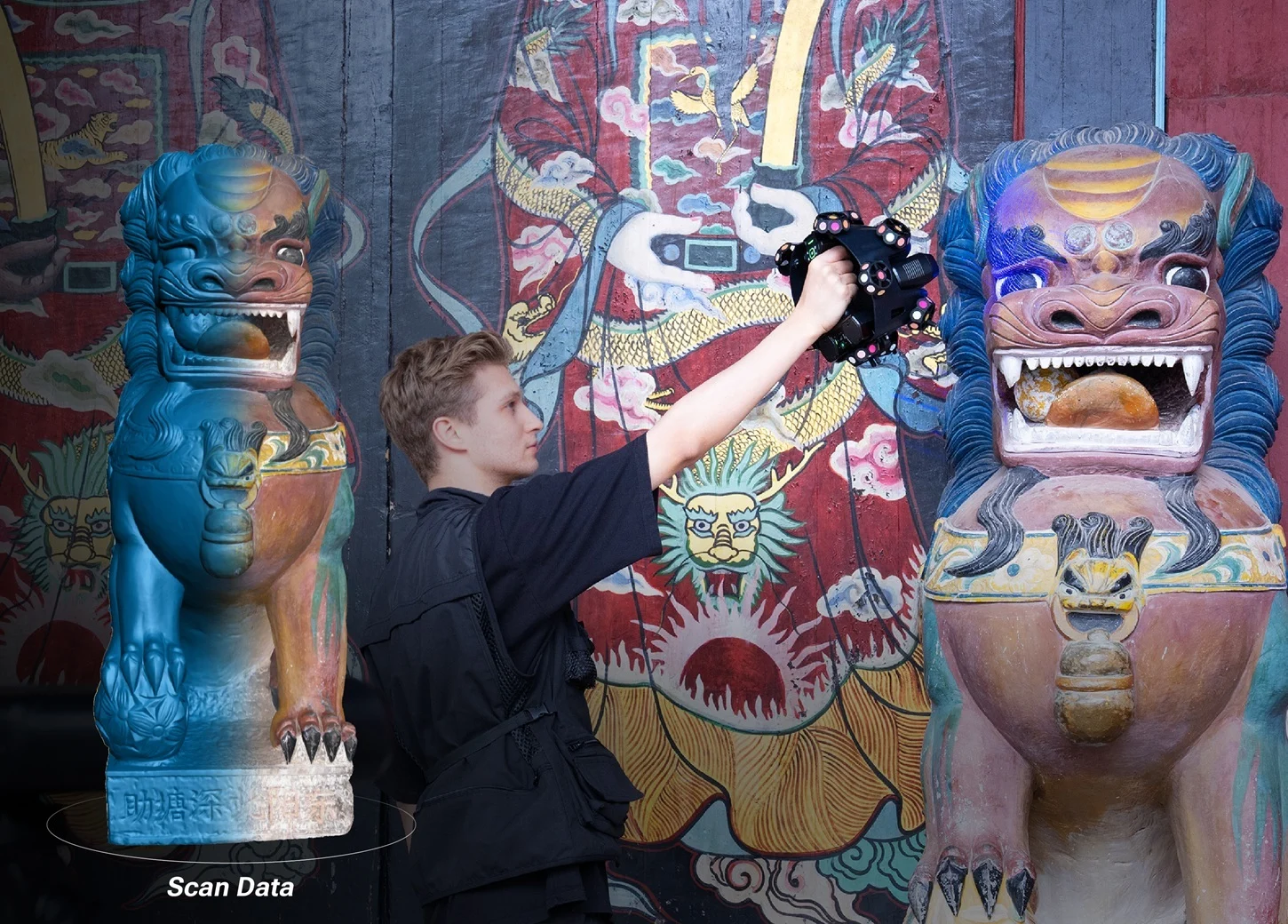

Preserve sculptures, reliefs, historical artifacts, and architectural details without placing markers on valuable surfaces. With 5MP texture capture, EinScan Trak records both geometry and color details for restoration, archiving, research, and digital exhibition.
AR, VR & Digital Content
Create accurate, true-color 3D assets from real-world objects for immersive digital experiences. EinScan Trak helps transform artworks, props, cultural objects, and physical models into high-quality digital content for AR, VR, games, and visualization.
Education & Scientific Research
Provide students, researchers, and laboratories with an intuitive tool for 3D data capture, measurement, and analysis. Wireless operation and flexible scanning modes make it easier to explore complex objects, document findings, and support hands-on learning.
3D Model Gallery
EXScan Trak Software
EXScan Trak is a scanning software for EinScan Trak Series, designed to support complex 3D data acquisition with a flexible and efficient workflow.
Smart Merge of Different Modes and Resolutions
Real-Time Laser and Resolution Switching
Rapid & Diverse Data Editing Tools
Real-Time Feedback Scan Interface
Technical Data
| Volumetric accuracy | Up to 0.1 mm |
| Detailed scan | Included (7 parallel laser lines) |
| Resolution | 0.05 ~ 10 mm |
| Max. FOV | Tracking mode: 4796 x 4174 mm @4000mm Handheld scanner mode: 547 x 463 mm @500mm |
| Certifications | CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 |
| High-speed scan | Included (19 + 19 crossed laser lines) |
| Deep pockets scan | Included (single line) |
| Scan Speed | 2,630,000 points/s |
| Net weight | Tracker: 1.02 kg Spherical scanner: 1.46 kg Handheld scanner: 0.48 kg |
